WL1220 High Performance Ferrite Core Ignition Coil Solutions

Ferrite core ignition coils are advanced electromagnetic devices for the effective generation of high voltage energy for ignition. The ferrite core focuses the magnetic flux, thus providing high output performance with small size. These ignition coils consist of ferrite core, copper winding, insulators and protective housing.

Ferrite core ignition coils are designed for industrial applications and characterized by high electrical efficiency, steady voltage output, and long lifetime. Suitable for applications with repeating ignition cycles, high frequency performance and limited installation space. Custom winding solutions can be developed taking into account voltage, frequency, temperature and mechanical requirements. Ferrite core ignition coils, being lightweight, fast and energy efficient, have become important components for modern ignition and electronic control systems.

Get A Free Quote

PDF Download

Ferrite Core Ignition Coil Prouduct overview

The ferrite core ignition coil with high quality ferrite magnetic materials and accurate copper windings demonstrates the efficient voltage conversion. The product consists of ferrite core, primary coil, secondary coil, insulation layer and protective housing. These coils are suitable for industrial and electronic applications and provide steady high voltage output, low energy losses and reliable performance. Manufacturers can customize coil parameters such as voltage rating, frequency range, dimensions and mounting structure. Ferrite core ignition coils are the best solution for OEM applications needing small size, high reliability and great electromagnetic performance

How does a ferrite core ignition coil work?

The ignition coil with ferrite core operates on the basis of electromagnetic induction principle. When the current passes through the primary winding, a magnetic field is created around the ferrite core. The ferrite material focuses and amplifies the magnetic flux, thus increasing the efficiency of energy transformation.

The collapsing magnetic field causes a high voltage to be induced in the secondary winding after interruption of the primary current flow. The voltage is significantly increased due to the fact that the secondary winding has much more turns than the primary winding.

This high voltage pulse is then applied to the ignition electrode, spark plug or ignition system to create a spark. Ferrite core responds to the changes in magnetic flux more rapidly and operates better at high frequencies.

Key Features of Ferrite Core Ignition Coil

There are a number of performance advantages in using ferrite core ignition coils. They have high voltage output, high magnetic efficiency, small size and fast response. During operation, the ferrite core decreases the magnetic losses and improves the efficiency of energy conversion. The coils have high insulation properties, steady electrical performance and reliable operation under harsh industrial conditions. They are lightweight, thus being suitable for limited space applications. Custom windings allow for optimization of resistance, inductance, voltage output and operating frequency. Ferrite core ignition coils also provide long lifetime, low energy consumption and steady ignition performance for automotive and industrial equipment.

WL1220 Ferrite Core Ignition Coil video

Ferrite Core Ignition Coil Detail Display

Ferrite Core Ignition Coil Product Feature Overview Infographic

Ferrite Core Ignition Coil Working Principle Infographic

Ferrite Core Ignition Coil OEM Process Infographic

Ferrite Core Ignition Coil Performance Integration Infographic

Ferrite Core Ignition Coil Quality Assurance Infographic

Ferrite Core Ignition Coil Buyer Checklist Infographic

Ferrite Core Ignition Coil Technical

Item	Description
Ferrite Coil Inductor	Enameled copper wire
Wire Diameter	0.2 (AWG options available)
Winding Type	Single-layer round or sectional winding
Core Material	Magnetic Rod
Footprint length	20 mm
Encapsulation	Optional varnish, epoxy, or coating
Mounting	Through-foot / Custom

Electrical Specifications (Typical)

Parameter	Description
Inductance Range	0.1 µH – 100 µH (customizable)
Inductance Tolerance	±2%, ±5%, ±10%
DC Resistance (DCR)	Custom
Q Factor	High Q, optimized for frequency range
Self-Resonant Frequency	High, application-dependent
Operating Frequency	kHz to MHz range
Rated Current	Custom per design
Insulation Resistance	≥100 MΩ

Why Ferrite Core Ignition Coils Are Gaining Popularity

The increasing popularity of ferrite core ignition coils is due to the fact that the contemporary equipment requires small-size and light-weight electrical components. The high-frequency performance provided by the ferrite material allows the manufacturers to produce compact ignition solutions with high energy efficiency.

The growing number of electric control systems, automation equipment, automotive electronics and intelligent industrial devices results in increased demand for reliable high voltage components. Ferrite core ignition coils have the advantages of fast response, low power consumption, stable output and flexibility of customization.

The continuous progress in ferrite materials and manufacturing technologies will promote further development of these coils in future ignition systems, industrial automation and electronics.

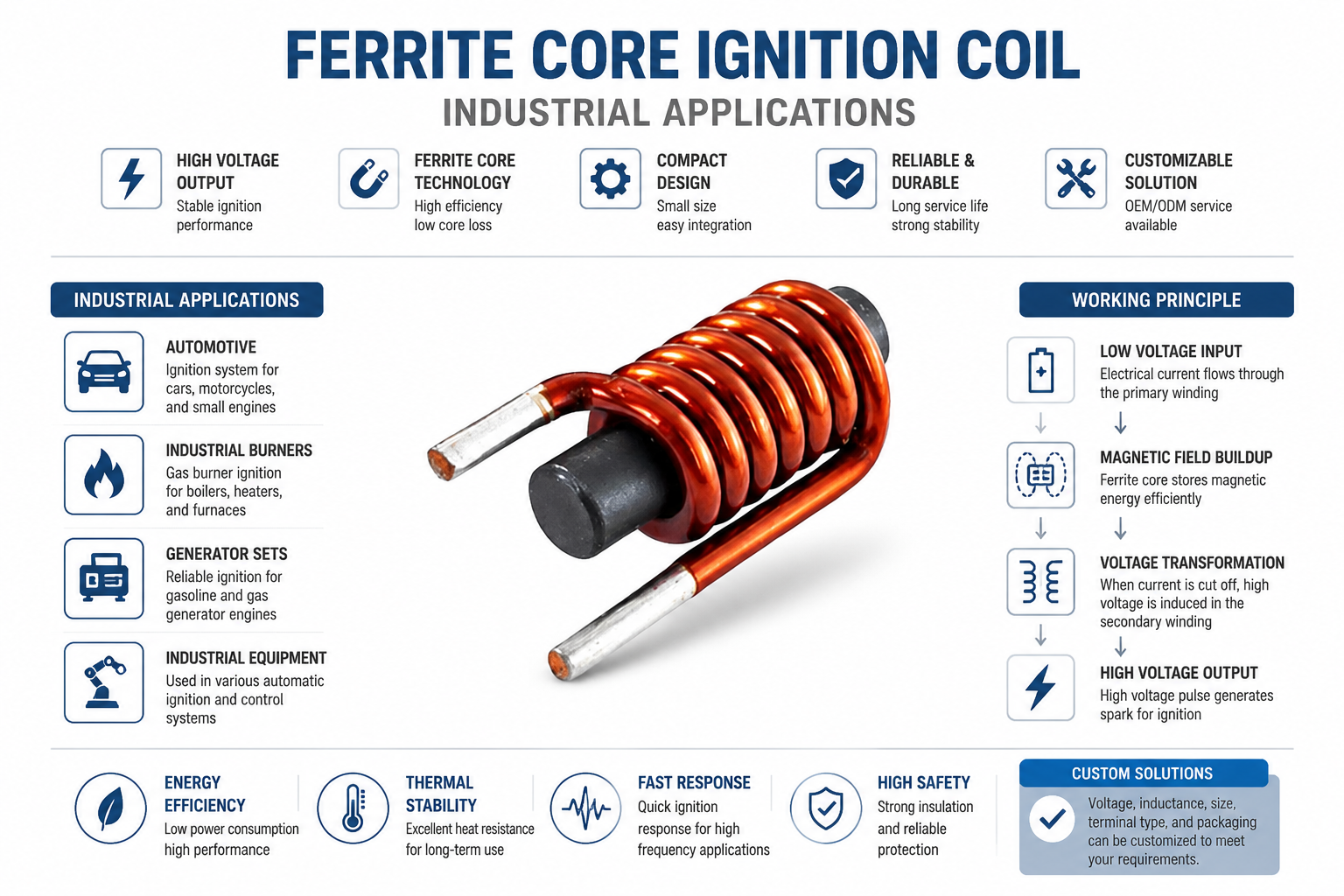

Ferrite Core Ignition Coil Industrial Application

Ferrite core ignition coils are widely used in automotive, industrial and electronic applications owing to their high efficiency and reliable high voltage generation capabilities.

In automotive systems these coils are utilized in ignition modules, gasoline engines, motorcycles and small engine equipment. They provide steady spark energy for improved combustion efficiency and engine reliability.

Ferrite core ignition coils are used in industrial applications such as gas burners, industrial heating systems, boilers, combustion equipment, and automatic ignition systems. Owing to their small size and high-frequency performance, they are well-suited for modern electronic ignition controls.

Also used in aerospace equipment, laboratory equipment, medical equipment and automation systems requiring precise high-voltage pulses.

Ferrite core ignition coils are designed for different voltage levels, operating temperatures, mechanical structure and installation requirements. The combination of high efficiency, long lifetime and small size makes them increasingly popular for advanced electrical systems.

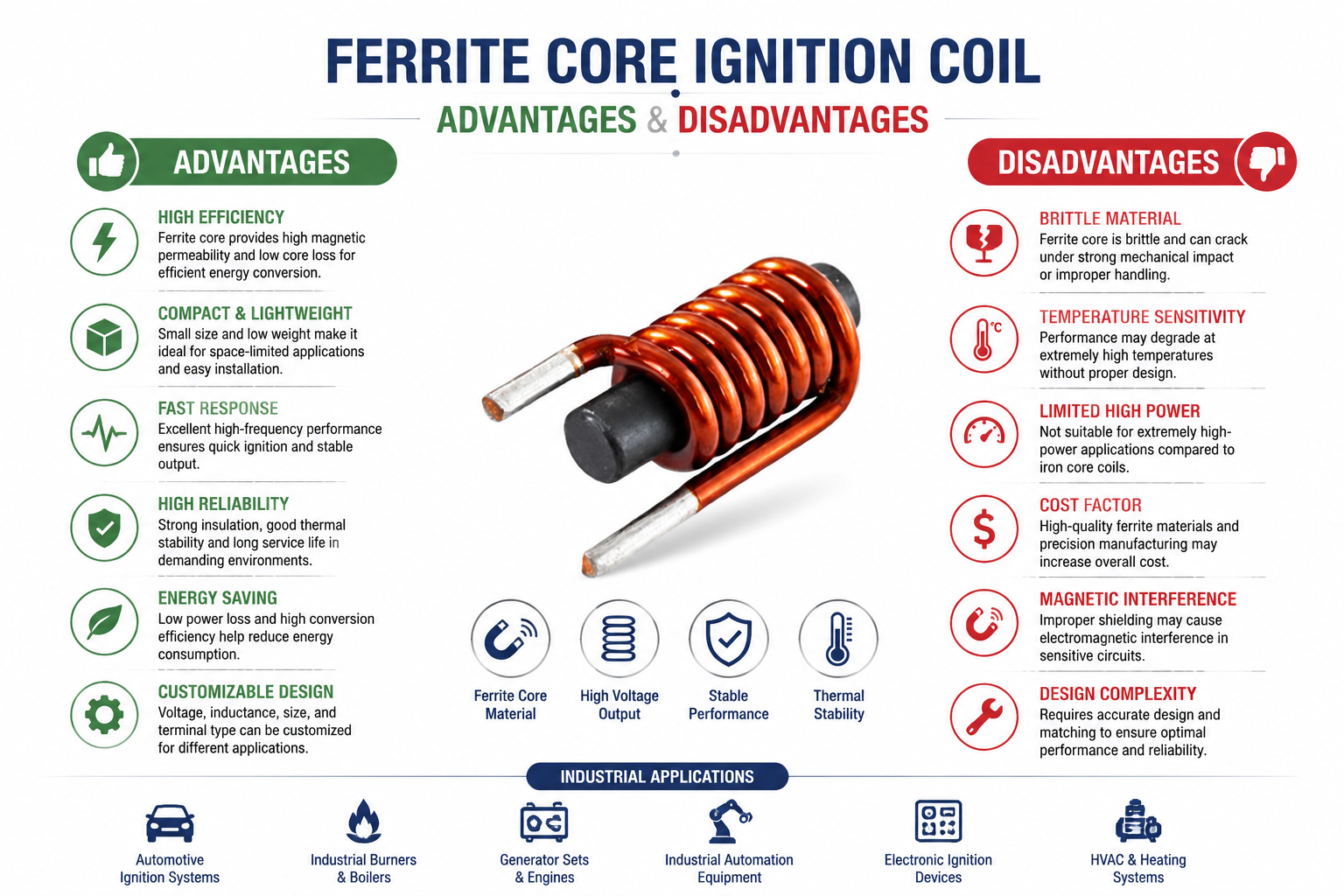

Ferrite Core Ignition Coil Advantage and Disadvantage

Ferrite Core Ignition Coil Advantages

The ferrite core ignition coil has many advantages compared to conventional magnetic ignition coil. They are easy to install in modern equipment owing to their light weight and compact design. Ferrite materials have good high-frequency performance allowing reducing energy losses and improving efficiency. They provide quick response, steady voltage output and reliable ignition performance.

Another advantage is customizability. The winding design, core size, voltage output and mechanical structure can be customized by the manufacturer according to the customer requirements.

Ferrite Core Ignition Coil Disadvantages

The ferrite core ignition coils have certain advantages, but also certain limitations. Ferrite materials are brittle and require careful mechanical treatment. Improper design may result in the damage of the core due to vibration or impact.

They also may have certain limitations in very high power applications where larger magnetic cores are needed. Continuous operation at high frequency may cause temperature increase, thus requiring suitable thermal management.

Ferrite core ignition coils in general provide good compromise of efficiency, size and reliability for most modern ignition applications.

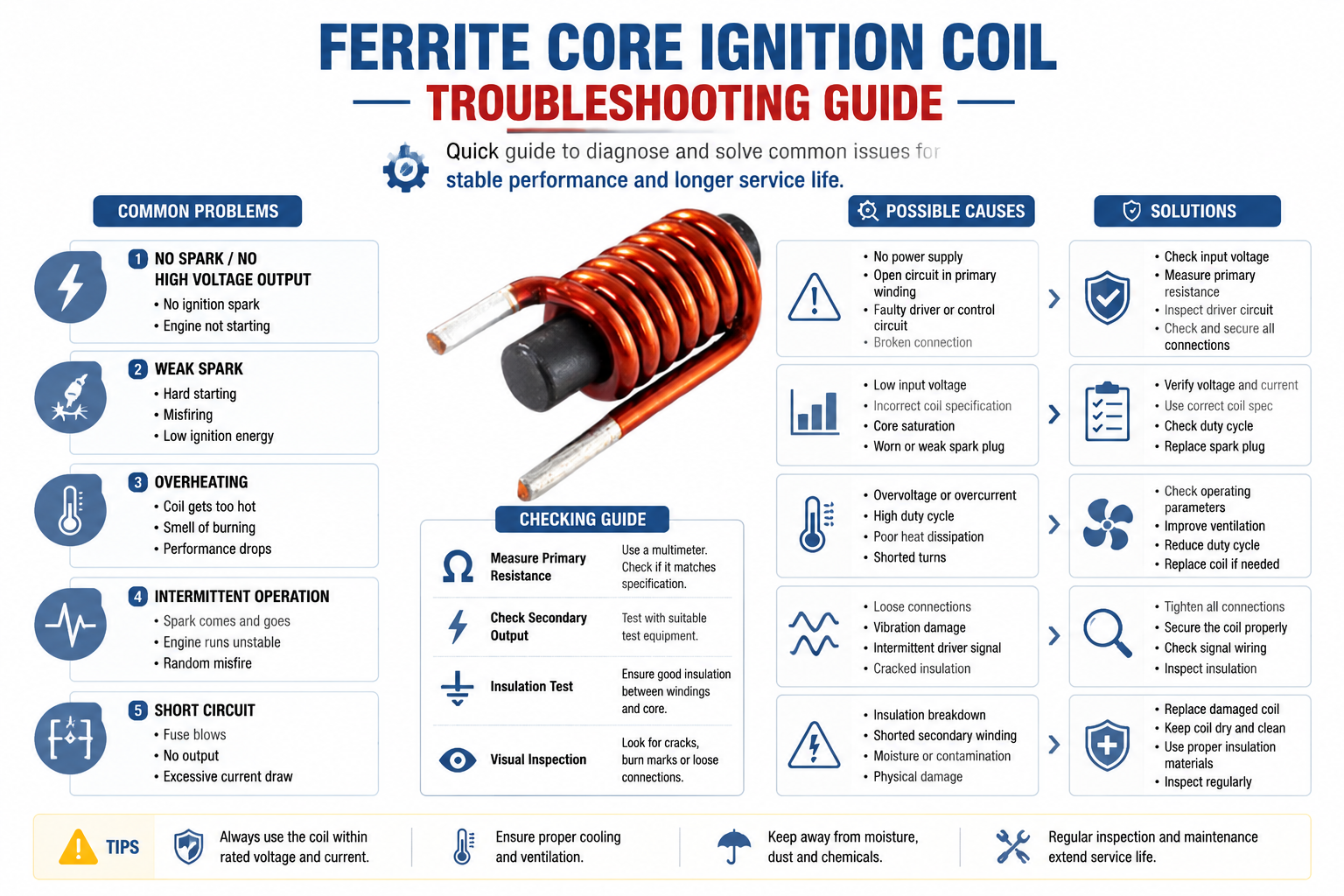

Troubleshooting a Ferrite Core Ignition Coil

1.No High Voltage Output

There might be faulty windings, incorrect power supply, insulation problem or control circuit malfunction. Perform electrical testing.

2.Poor Ignition Spark

The reasons for the poor performance can be the inappropriate winding design, core saturation or low input current.

3.Overheating Problem

The excessive temperature can be caused by the overload, incorrect frequency of operation, inadequate heat dissipation. Enhanced cooling and operating conditions.

4.Intermittent Operation

The loose connections, vibration damage or insulation problems can cause unreliable performance. Inspect mechanical connections and wiring.

5.Short Circuit Fault

The short circuits may be caused by the insulation problems between the windings. Perform appropriate testing and apply proper insulation materials.

Regular inspections, electrical testing and preventive maintenance can significantly increase the reliability of ferrite core ignition coil.

8 FAQs On Ferrite Core Ignition Coil Comment

1. What is the ferrite core ignition coil used for?

The ferrite core ignition coils are mostly used for generation of the high voltage pulses in the ignition systems. They are applied in automotive engines, industrial burners, gas ignition systems, combustion systems and electronic ignition devices. The ferrite core improves the magnetic performance of the component which makes it possible to produce a stable high voltage output in a compact structure.

2. How does the ferrite core ignition coil work?

The ferrite core ignition coil operates on the principle of electromagnetic induction. Passing an electric current through the primary winding creates the magnetic field around the ferrite core. Interrupting the current flow leads to the collapse of the magnetic field and the creation of the high voltage in the secondary winding. This high-voltage pulse produces the spark that ignites.

3. What are the benefits of the ferrite core ignition coil?

The ferrite core ignition coil has the following advantages: high efficiency, compact size, fast response, low energy loss, stable voltage output. The ferrite magnetic core increases the flux concentration and high frequency performance of the component. These qualities make them suitable for applications which require reliable ignition performance and long operating life.

4. Can the ferrite core ignition coil be customized for the OEM project?

Yes. The ferrite core coil can be produced according to a specific OEM request. The size of the coil, the output voltage, the winding ratio, the core material, the operating frequency, the connector design and the mounting structure can be changed by the manufacturer. Custom solutions are typically developed for automotive, industrial and electronic equipment applications

5. How to select the right ferrite core ignition coil?

When choosing a ferrite core coil you should take into account the following parameters: output voltage, input voltage, operating frequency, power requirements, duty cycle, installation space and environmental conditions. The coil has to be compatible with the ignition system requirements in order to achieve stable performance and avoid overheating and insulation breakdown.

6. Why is the ferrite material used in ignition coils?

Ferrite Material

Widely used due to its excellent magnetic properties at high frequencies. Ferrite cores have lower energy loss and better efficiency as well as improved thermal performance compared to traditional magnetic materials. It allows achieving superior performance of the ignition coils with compact and light-weight design.

7. What causes the ferrite core coil failures?

Overheating, insulation failure, incorrect operating voltage, winding damage, excessive vibration and poor circuit matching are typical faults of the ferrite core ignition coils. The regular inspection, proper installation and choice of a suitable for operating conditions coil will allow to extend the service life of the component.

8. How can I make a ferrite core coil last longer?

In order to prolong the service life of the ferrite core ignition coil it has to be used within its operating voltage and frequency range, adequate heat dissipation, protection from moisture and vibrations as well as good electrical connections have to be provided. Better selection of ferrite materials and reliability testing at the design stage can also help to improve its performance.

How to Choose Ferrite Core Ignition Coil ?

Electrical, mechanical and environmental factors should be considered when selecting the proper ferrite core ignition coil.

1.Determine Voltage Requirements

The first step is to select the necessary output voltage. The voltage level needed by the ignition system depends on the distance the spark needs to travel, loading conditions and the type of application.

2.Check Operating Frequency

Ferrite cores are especially good for high frequency applications. Choosing the correct frequency range guarantees high magnetic performance and prevents overheating.

3.Evaluate Power Requirements

The coil should have sufficient power to ignite. Consider input voltage, current rating, operating time and duty cycle.

4.Consider the Quality of the Core Material

The selection of ferrite material influences magnetic efficiency, temperature resistance and energy losses. The high quality ferrite cores are more stable and provide longer service life.
