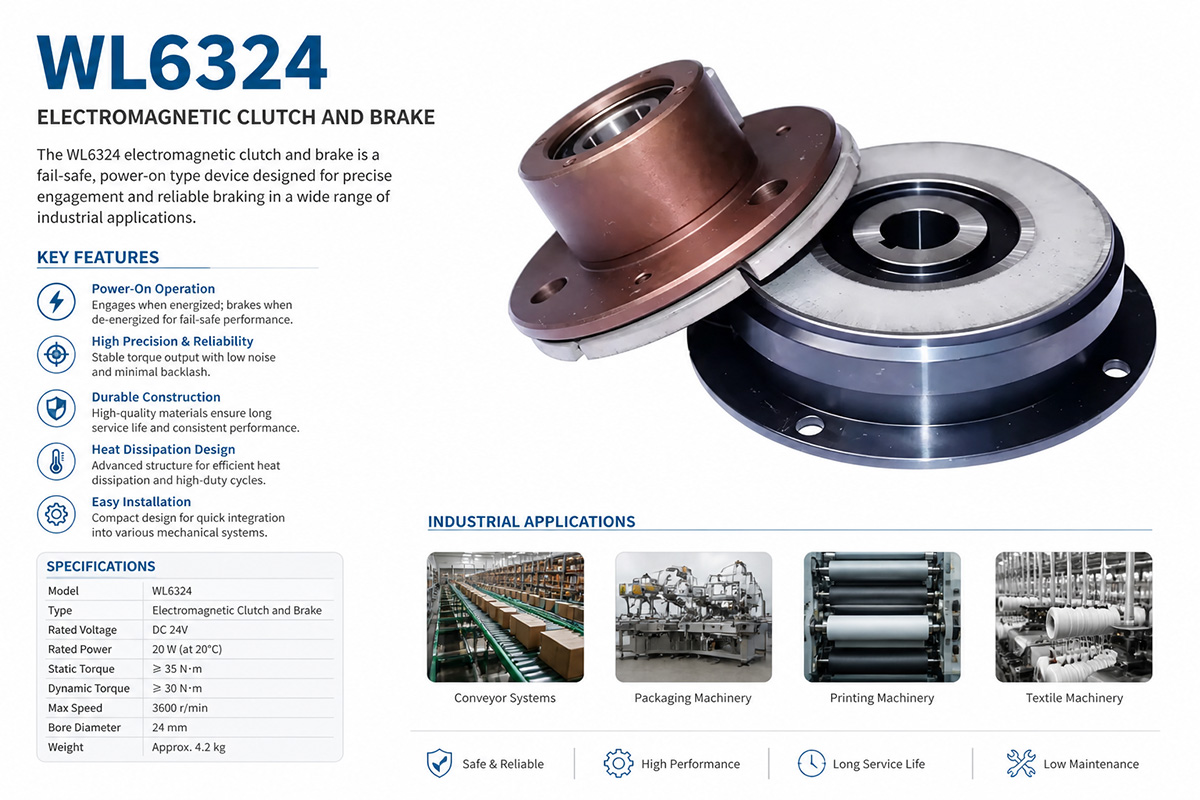

WL6324 Electromagnetic Clutch and Brake System Guide

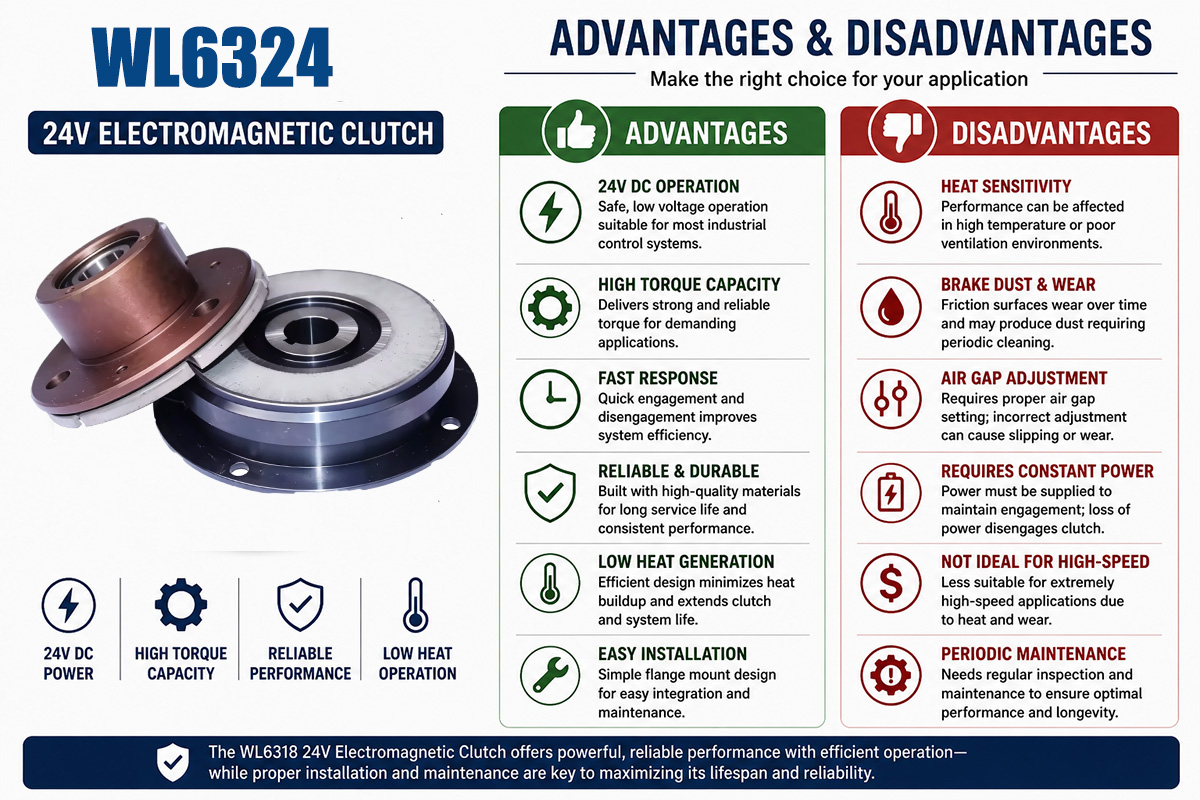

Electromagnetic clutch and Brake Pros

Electromagnetic clutch and brake systems are highly appropriate for industrial applications and come with numerous advantages. Quick response and accurate control ensure precise engagement and stopping. Their compact design ensures seamless integration into diverse machines, and their low maintenance needs reduce operating costs. They also ensure automation and remote control, which enhances efficiency and flexibility.

Another critical advantage is their smooth operation, which lowers vibrations and noise. In addition, they offer reliable performance and high durability, suitable for continuous use.

Electromagnetic clutch and Brake Cons

However, there are some disadvantages to watch out for. Electromagnetic systems require a constant power supply, leading to high energy consumption. Heat generation during operation might affect performance. High-load applications may cause excessive wear on friction components over time.

There could be higher initial costs compared to traditional mechanical systems. Nevertheless, despite these disadvantages, the advantages of accuracy, speed, and automation often outweigh the drawbacks, making electromagnetic clutch brakes a preferred choice in modern industry.

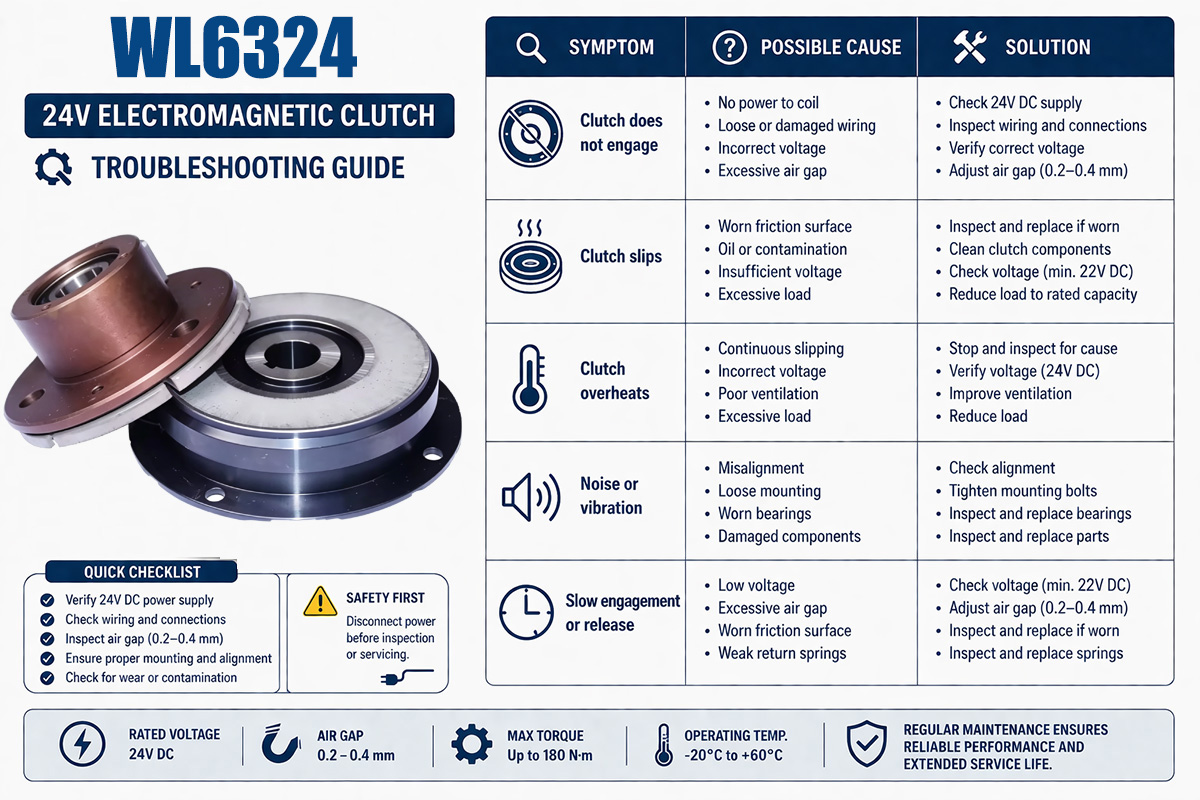

Tackling Troubles with Electromagnetic Clutches and Brakes

First one:

Troubleshooting electromagnetic clutches and brakes starts by determining whether the fault is either mechanical or electrical in nature. Here are four common problems faced by users. These include failure to engage, failure to disengage, slipping, and strange sounds.

Voltage Test: Using a multimeter, test whether the coil is receiving the appropriate amount of voltage (12V or 24V DC). Low voltage leads to slipping.

Test the Coil: Measure the coil’s resistance. The “open” circuit has infinite resistance. This indicates that the coil is broken. When it reads “short” or zero, the coil is burned. One of them needs a new coil.

Wiring Test: Inspect for damaged, pinched, or corroded wiring. Furthermore, confirm that the earth connection is intact.

🛠️ Step 2: Inspection of the Mechanical Parts and Air Gap

When there are no electrical issues, it must be mechanical.

Air Gap Test: This refers to the distance between the rotor and the armature. Too wide an air gap leads to failure to engage. If it is too narrow, the components may drag each other or not disengage.

Contamination Test: The presence of oil, grease, or dust on the friction surfaces reduces the holding torque considerably. Burnish and clean the surfaces using a solvent.

Mechanical Wearing: Disassemble the machine and examine the rotor and armature. Any deep scores, cracks, or blue/burned marks indicate that it has overheated or “galled” due to severe slippage.

🔧 Step 3: Remedy Steps

Burnishing (Bedding In): Friction surfaces should be “burnished” (engaged/disengaged under load with reduced torque). Failure to do so results in slippage immediately.

Adjusting the Air Gap: Most units have nuts or screws that allow for adjustment of the air gap. The thickness required is specified in the owner’s manual (often measured using a feeler gauge).

Replacement of Components: When the coil is shorted or open, or the friction faces are severely galled, you will have to replace the defective component. Remember to purchase one that matches the voltage and torque specifications.

🦺 Safety Precautions

⚠️ Turn Off Power: Switch off the battery or disconnect the power source.

Heat Warning: The rotor and coil may be dangerously hot in case of slippage. Cool them down before handling.
