Introduction: The Importance of Solenoid Troubleshooting
Solenoids are a class of electromagnetic actuators used in industrial automation, vehicles, medical, printing, and valve equipment, security equipment, and smart control systems.
They provide reliable linear or rotational movements of the actuator by converting electrical energy into mechanical motion.
Solenoids are created to function efficiently, but sometimes problems arise due to the wrong choice of the solenoid, incorrect installation, or electrical, mechanical, or environmental problems.
A thorough solenoid troubleshooting procedure enables one to detect the root cause of the issue and restore to normal operation while minimizing downtime.
The following guide describes the most common types of Solenoid troubleshooting, causes of their appearance, and solutions.

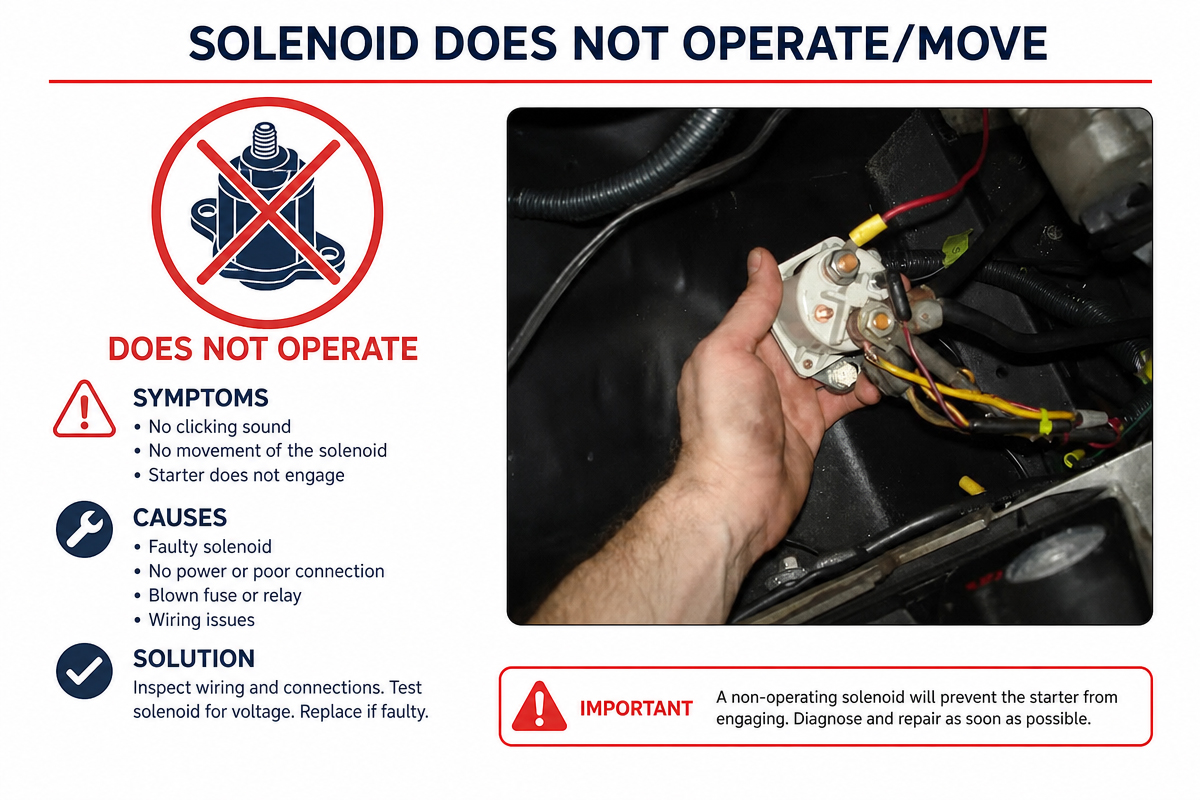

Chapter 1: Solenoid Troubleshooting on the Solenoid Does Not Operate/Move
Problem statement
The solenoid receives the control signal, but the plunger, armature, or actuator does not move.
It is one of the most frequent solenoid troubleshooting problems.
Potential causes
1.1. Lack of Power Supply
The solenoid requires a specific amount of voltage and current to create a magnetic field.
Possible reasons for malfunction:
Electricity supply failure
Wrong voltage connections
Loose wires
Damaged connection
Broken cable
1.2. Incorrect Voltage
Each solenoid has the designated voltage.
Examples of the solenoid voltage:
DC 12V solenoid
DC 24 V solenoid
DC 48V Solenoid Valve
Wrong voltage results in the following:
Magnetic force is insufficient.
Overheating
Damage of the coil.
1.3. Solenoid Troubleshooting on Broken Coil
The electromagnetic coil of the solenoid can break due to:
Overvoltage
The duty cycle is too high.
High temperature
Lack of insulation
Chapter 2: Solenoid Troubleshooting steps
Measure the voltage of the power supply with a multimeter.
Verify the voltage to the solenoid according to its specifications.
Check the resistance of the coil to see if the solenoid has failed.
Analyze the wiring connections.
Check the solenoid using the power source, which is proven to work properly.
Solutions
Wiring connections—fix
Coil replacement
Choose the correct voltage model.
Improve power supply stability.
2.1. Solenoid Troubleshooting on Low Pull Force Solenoid
Problem statement
The solenoid operates but cannot create sufficient force to move the load.
In the course of industrial application, the lack of force may lead to:
Valve failure
Mechanical problems with positioning
Equipment malfunctions
Possible reasons
2.2. Solenoid Troubleshooting on Low Voltage
Low voltage means a weak magnetic field.
Example: ”
If the 24V solenoid is supplied with 18V, it will not create sufficient pulling force.”
2.3 Solenoid Troubleshooting on wrong stroke distance
Increasing the air gap reduces the force of the solenoid.
With increased stroke, the following is required:
Increased power of the coil
Optimization of magnetic design
2.4 High mechanical load
The mechanical load can exceed the capacity of the solenoid.
Verification:
Required pulling force
Springback
2.5 Magnetic cores’ problems
Possible reasons:
Incorrect material
Plunger damage
Contamination of the tube
Too big an air gap
Solutions
Check the voltage.
Reduce mechanical load
Use a solenoid with higher force.
Optimize the stroke distance.
Cleaning of the internal components

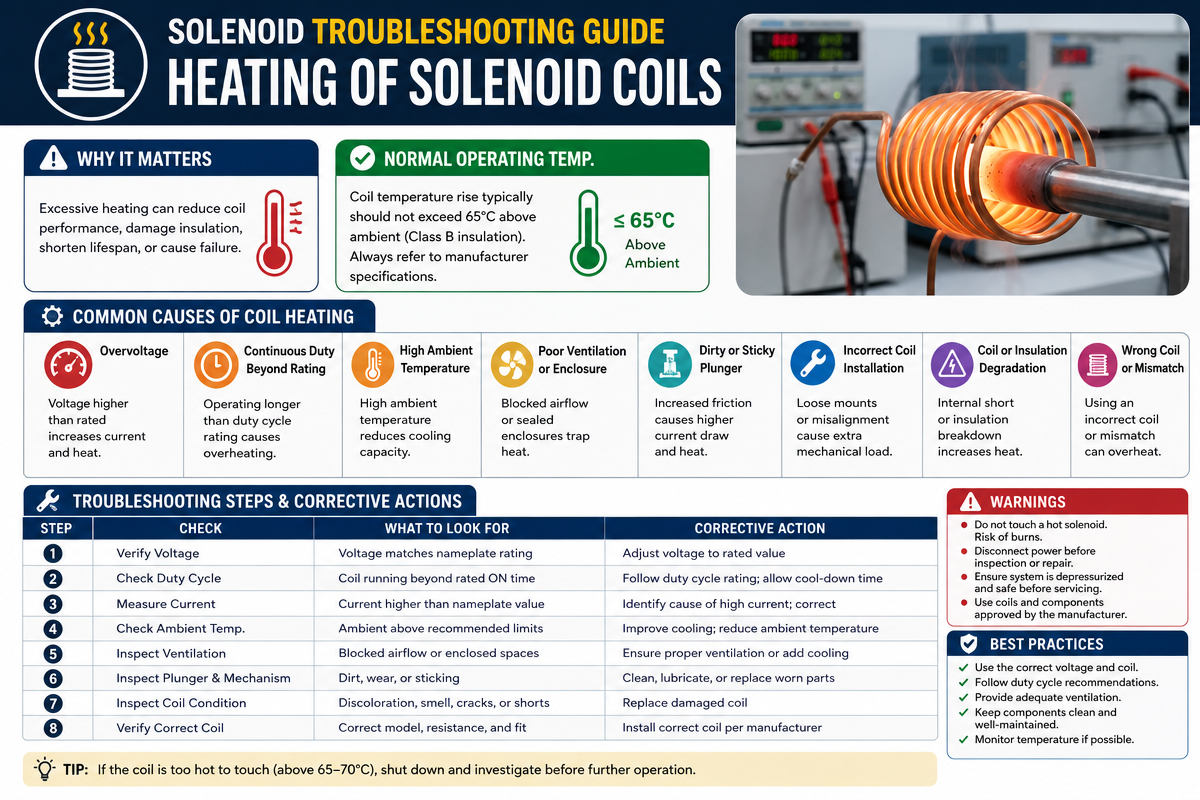

Chapter 3: Solenoid Troubleshooting Guide on Heating of Solenoid Coils
Problem statement
The solenoid gets heated up when it operates.
It can be heated up, but overheating will reduce its life span and damage the coil.
Potential reasons
3.1. Incorrect duty cycle
The solenoid designed for intermittent duty cannot be operated continuously.
For example:
A 10% duty cycle solenoid operated with 100% duty may cause overheating.
3.2. Solenoid operation with voltage exceeding the specified one
The higher the voltage, the higher the current and the higher the temperature generated.
3.3. Solenoid Troubleshooting on Bad Heat Dissipation
Reasons:
Closed installation space
High ambient temperatures
Bad ventilation
3.4. Bad Coil Design of solenoid troubleshooting
Possible manufacturing problems:
Incorrect wire size
Wrong winding turns
Poor insulation
Solutions
Check the duty cycle.
Continuous-duty solenoid
Improve heat dissipation.
Select the correct coil.
Chapter 4: Solenoid Produces Abnormal Clicking, Buzzing, Or Vibration
Description of Problem
The solenoid generates abnormal noises or vibration during operation.
Potential causes
4.1. Mechanical cause
Clicking noise may appear during the high-speed movement when the plunger approaches the final position.
4.2. Solenoid Troubleshooting on Loose Fitting
Problems:
Loose mounting screws
Wrong mechanical installation
Vibration of the housing
4.3. Magnetic Vibration AC Solenoid
AC solenoids may produce noise because:
Magnetic vibration
The quality of the shading ring is low.
4.4 Contaminated Moving Parts
Dust, oil, or any foreign material may influence the movement of the solenoid
Solutions
Verify Mechanical Installation
Add a damping system.
Clean the moving parts.
Enhance voltage stability.
4.5. Solenoid Troubleshooting Guide for Solenoid Plunger Moves Slowly or Sticks
Problem Statement
The solenoid operates, but the plunger moves slowly, abnormally, or sticks at all.
Possible Reasons
1. Foreign Material Inside Solenoid
Common foreign materials are
Dusting
Metallic particles
Oil film
2. Solenoid Troubleshooting to Too Much Friction
Reasons:
Poor surface finish
Incorrect tolerance
Wear and tear
3. Incorrect Installation Alignment
Misaligned mechanical components will interfere with smooth movement.
Solutions
Clean the internal components.
Check the movement of the plunger.
Better lubrication if necessary
Correct installation alignment.
4.6. Solenoid Coil – Open Circuit Failure
Problem statement
There is no current passing through the coil, and, thus, the solenoid creates no magnetic field.
Potential Causes
Ripped copper wire
Poor solder joint
Damaged terminals
Manufacturing fault
Testing Approach
Use the multimeter:
Turn off the power.
Check the coil resistance.
Compare with specification.
It can be a permutation of:
Infinite resistance = open circuit
Normal resistance = coil probably good
How You Can Help
Fix the wiring.
Change the coil assembly.
Improve quality control in manufacturing
4.7. Solenoid coil short circuit damage
Description Of The Problem
The coil resistance is below the normal value, and the current is too high.
Potential Reasons
Damaged enamel wire insulation
Too high winding pressure
High-temperature damage
Moisture contamination
Symptoms
Overheating
Insufficient magnetic force
Burned coil smell
Power supply protection is activated.
Solutions
Replace the damaged coil.
Improve insulation protection.
Temperature management during operation
4.8. Solenoid Troubleshooting: The Solenoid Does Not Return to Original Position
Problem statement
The plunger does not return to the initial position after removing the power supply.
Possible Reasons
1. Spring failure
Possible problems:
Spring is cracked.
Incorrect spring force
Spring fatigue
2. Mechanical resistance
Reasons:
Contaminated soil
Disinformation
Too much friction
3. Incorrect solenoid
The return force may not fit the requirements.
Solutions
Replace the spring.
Reduce friction.
Choose the correct return spring design.

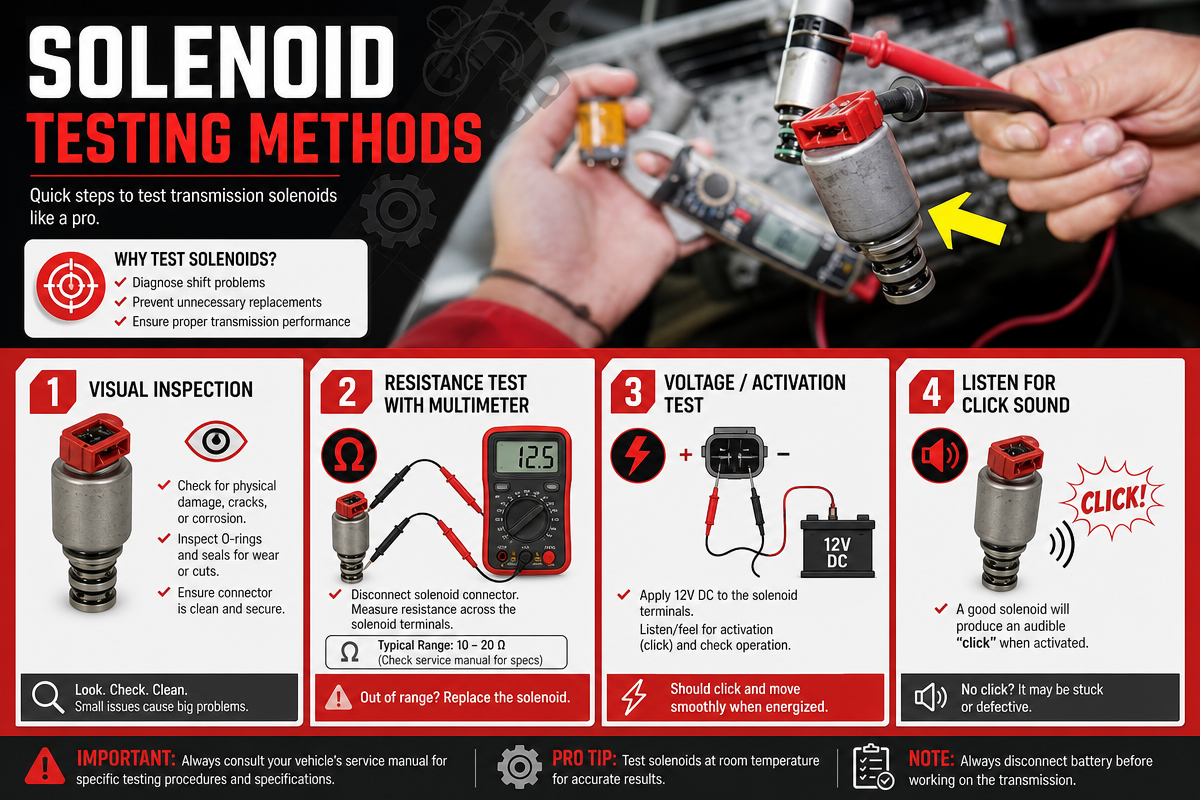

Chapter 5: Solenoid Testing Methods
To perform the proper troubleshooting, one needs to have appropriate test equipment.
5.1 Electrical Tests
Equipment:
Multimeter ( )
Resistance meter
Insulation tester
Verification:
Coil resistance
Used current
Insulation resistance
5.2 Mechanical Tests
Check:
Stroke distance
Pull force
Return force
Speed of operation
5.3 Life Cycle Tests
Long-term reliability tests include:
Cycle life
Temperature rise
Mechanical wear
Typical industrial requirements:
50,000 cycles
100,000 cycles
1 million cycles
Chapter 6: Prevention of Solenoid Failures
The best approach to troubleshooting solenoids is prevention.
6.1. Selecting the Correct Solenoid
Before purchase, make sure:
Voltage
Force requirement
Stroke distance
Duty cycle
Environment
6.2. Following the Correct Installation
Important factors:
Correct installation
Correct wiring
Protection from damaging elements
6.3. Controlling Operation Conditions
Take care of the following:
Temperature
Humidity
Dust
Vibration
6.4. Selecting a Reputable Solenoid Manufacturer
Professional manufacturers should provide:
Technical support
Customized design
Performance testing
Quality certification
Traceability of production

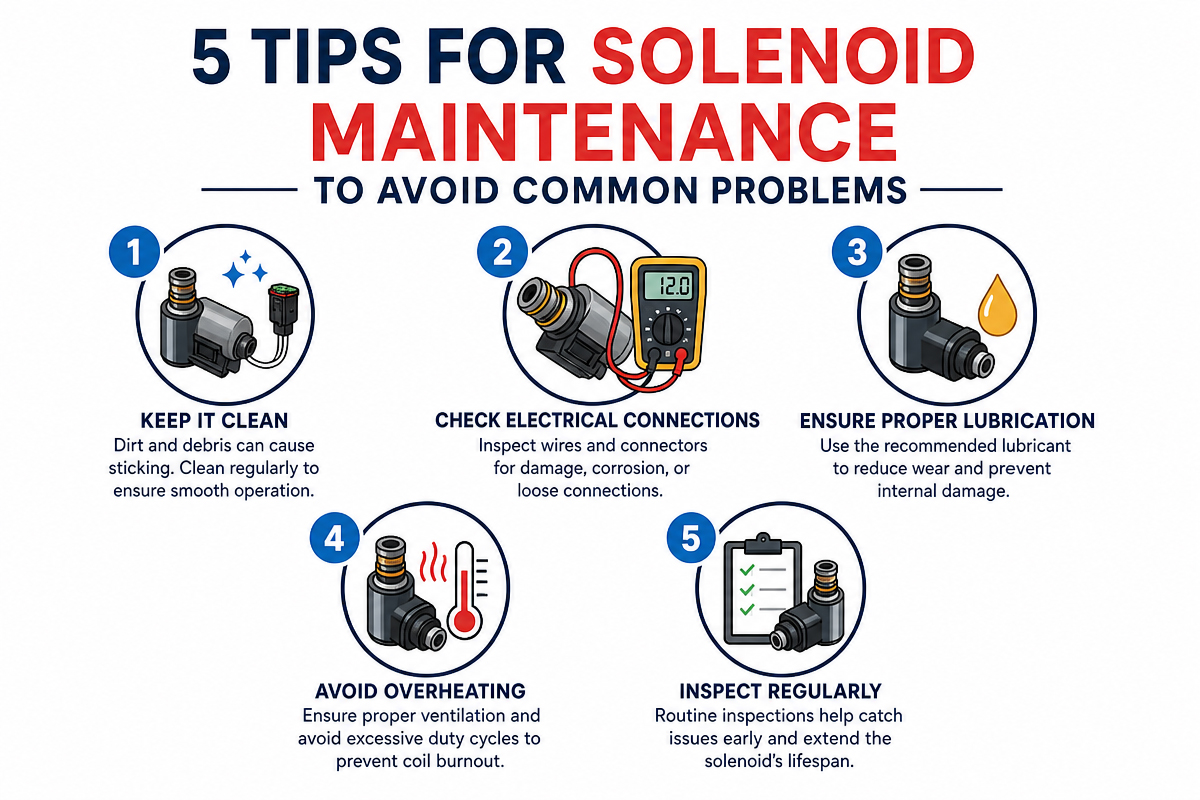

Chapter 7: 5 Tips for Solenoid Maintenance to Avoid Common Problems
Below are 5 basic tips for solenoid maintenance.
7.1. Control of the Operating Voltage
One of the reasons for malfunction is the voltage, which does not meet the requirements of the solenoid. If the voltage is too high, the coil becomes overheated and insulation is affected. Low voltage reduces magnetic field or leads to partial movement.
Remember to control the voltage supply, e.g., DC 12V, DC 24V, or DC 48V. Regular voltage checks can be useful for preventing any possible electrical failures and improving performance.
7.2. Protection from Overheating of Coil
During the work process, the coil becomes heated, especially under continuous duty. Such conditions can affect the life of the coil and eventually lead to its failure.
To avoid this problem, you need to:
- Check the requirements for duty cycle • Good ventilation
- Operating temperature monitoring
- Don’t use overrated voltage
It is very important to choose the right design of the solenoid for your environment
7.3. Keep the plunger in good condition and free from any interference.
The solenoid has only one moving part—the plunger. Particles of dust, dirt, or rust can jam the mechanism and create extra friction.
Maintenance of the solenoid should include such steps as
- Cleaning the area of the plunger • Mechanical blocking detection
- Wear of moving parts control
Correct maintenance of the plunger will keep the force and speed of response at a certain level.
7.4. Check the Electrical Connection
Intermittent operation or even total failure can occur due to loose terminals, broken wires, or poor connections.
It is recommended to verify the following during maintenance:
- Connection by the wire • Condition of the connector.
- Coil resistance:
- Corrosion signs
Good electrical connections will provide a steady current supply and even operation of the solenoid
7.5. Do not overload the machine.
Every solenoid has the defined force and stroke. Excessive loading of the machine can damage the plunger, spring, and other internal parts.
Before installation check the following:
- Required pulling or pushing force • Stroke length
- Operation frequency
- Duty cycle
Choice of the appropriate solenoid will eliminate the unnecessary strain and prolong service life.
Solenoid maintenance is a simple way to avoid common failure modes. By controlling voltage, heat, mechanical parts, and electrical connections and choosing the right loads, users can increase reliability and extend the operating life of their solenoids.
Chapter 8: Conclusion on solenoid troubleshooting
To solve solenoid troubleshooting, one should have knowledge of the electrical, mechanical, and environmental conditions influencing its operation. The most common problems, such as lack of operation, low force, overheating, excessive noises, coil damage, and mechanical sticking, can be easily solved by the proper testing.
To ensure reliable long-term performance, OEM engineers and equipment manufacturers should select the proper solenoid design and work with reputable manufacturers.
