WL1660 Solenoid Door Lock for Access

The WL1660 solenoid door lock is a small, effective door lock that can be used with smart door security systems. It uses DC voltage to convert electrical power into mechanical power, which, in turn, locks a steel bolt. It can be used for smart door locks, cabinets, vending machines, lockers, security doors, etc. It locks securely and steadily because it responds fast and has a strong holding power. It can be used for smart door security systems that need electronic door locks that work fast, consume less power, operate smoothly, and can be used for a long time. It is made of strong materials that work precisely, which means that it will work for a long time with the same efficiency. It is small, which makes it easy to install in small spaces. It is a fantastic option for security equipment manufacturers who want electronic door locks that work reliably and economically.

It is designed to be durable, lasting a long time, with the same performance every time. It is easy to install, with adjustable mounting holes for easier integration. It makes very little noise and vibration during operation. It can be used for smart door control, vending machines, cabinets, and automation.

Get A Free Quote

PDF Download

Solenoid Door Lock for Smart Systems

The solenoid door lock operates by using DC electricity to move a steel bolt with electromagnetic force. The lock operates fast and has a reliable locking system and mechanical design. The solenoid door lock operates in both fail-safe and fail-secure modes. Therefore, the solenoid door lock may meet different security requirements. The solenoid door lock should be installed in different cabinets and lockers as well as in vending machine systems. It has a long performance life cycle with more than 100,000,000 cycle times. times. The solenoid door lock is built with a strong carbon housing and an inside copper coil. The solenoid door lock is the best choice for companies that design security systems for other companies.

WL1660 DC Solenoid Door Lock Video

WL1660 Electronic Security Lock

WL1660 Solenoid Door Lock Datasheet

Brand	Weilong Technology	Model Number	WL 1660
Rated Voltage (V)	DC 6V，12V or 24V	Rated Power(W)	60–100 W
Work Mode	Push and Pull Linear	Holding Force (N)	20–30 N
Stroke(mm)	10-20 MM Customized	Reset Time(s)	1 S ON 9 S OFF
Service Life	200 Thousand Times	Certification	CE,ROHS,ISO9001,
Material	Superior Magnet Iron	Lead Wire Length(mm)	200 MM
Install Style	Screw	Tolerance of Dimension	+/- 0.1 MM
Water-proof	None	Insulation Class	B
Hi-Pot Test	AC 600V 50/60Hz 2s	Non-excitation Holding Force	0
Working Temperature	-10°C-100°C	Duty Cycle	1-100%
Thread Depth(mm)	/	Payment Term	TT, or LC At Sight
Sample Order	Yes	Warranty	1 Year
MOQ	1000 pcs	Supply Ability	5000 pcs per Week
Delivery Time	30 Days	Port of Loading	shenzhen

Unit Features：

Size： 60*33*40mm

Plungers: φ 20 mm

Stroke: 10–15 mm

Force: 20–30 N

Power: 60—100 W

Current: 1— 3A

Resistance: 60–200 Ω

Life: ≥300,000 times

Working Cycle: Continuous Power

Precise push-pull action: it can achieve relatively precise linear motion.
Strong force: it can generate strong thrust or pull.

Advantages and Disadvantages of Solenoid Door Lock

Solenoid door locks are used in many modern security devices. It can be used for doors that need to be locked from the inside, like in offices, business premises, and industries. It can be used for smart lockers, delivery boxes, vending machines, and ATM cabinets, which need to be locked from the inside to allow only certain people to access the contents. Some people use it with smart door control devices, which work with RFID, keypads, and even biometric devices for smart home control. Some companies apply it for locking precious items in retail display cabinets, which can be unlocked with solenoid door locks. It can be used for protecting equipment in electrical cabinets.

Electronic solenoid door locks make hotels, hospitals, etc., safer. Transportation devices, ticket machines, etc., also have solenoid locks. The small size of the WL1660, along with its reliability, allows it to work with IoT devices. Its changeability is an advantage, which makes it suitable for security product manufacturers who want to offer reliable electric locks for many different automated devices.

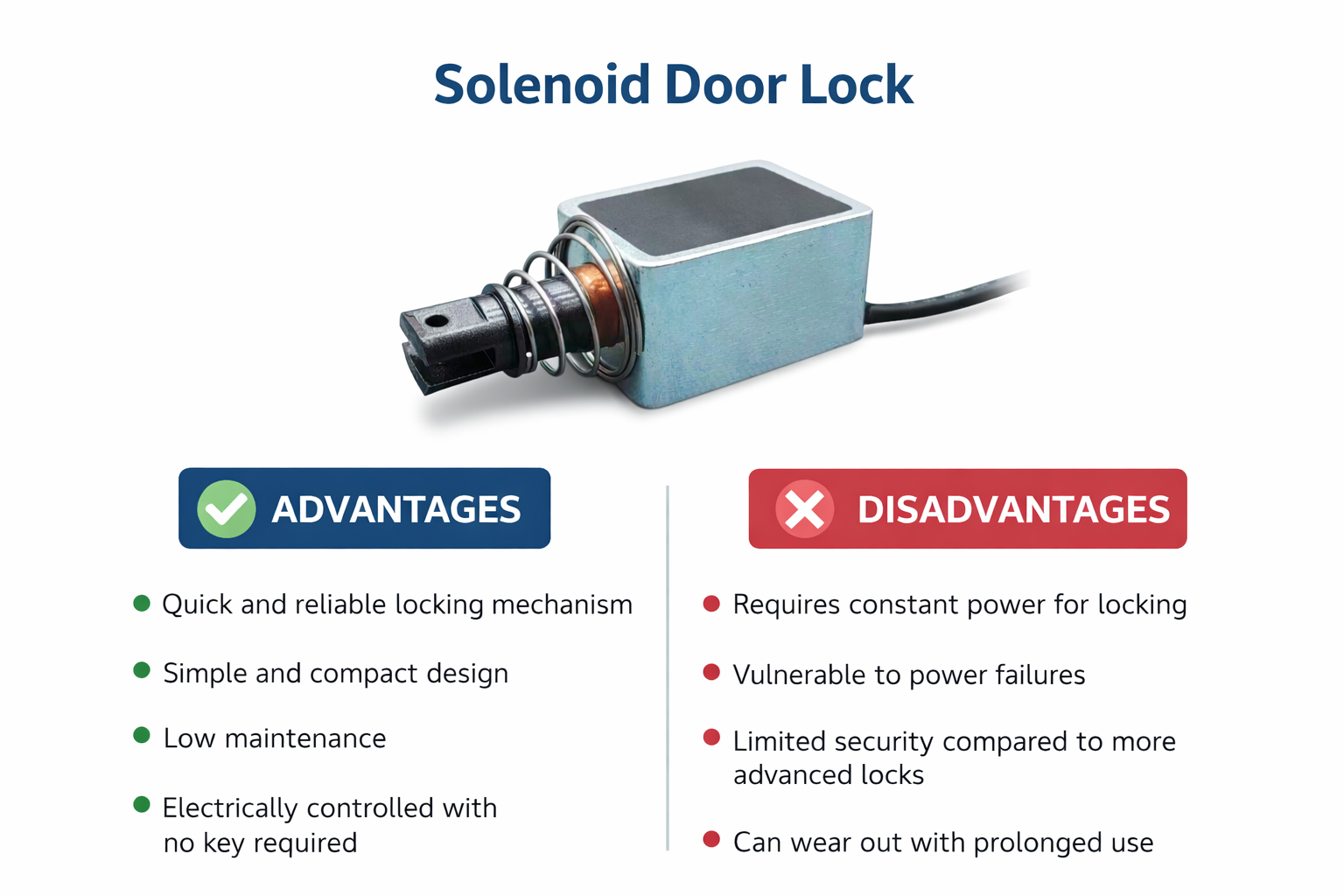

Advantages and Disadvantages of Solenoid Door lock

Pros

The solenoid door lock by WL1660 can lock doors fast, and it does it with good reliability. The device is small, which allows it to fit into tight spaces. Its design is simple, which means it does not require much maintenance. The lock works well with electronic door control systems. Its mass production is possible since it does not require much to make it. Having more voltage options allows it to work with more devices. Its strong build ensures it will last for a long time.

Cons

The fail-safe devices, which require power at all times, may consume more power. If it is not built properly, it can cause heat buildup, which can be dangerous. Its holding force is not strong enough, considering it is compared to other electromagnetic door locks. It requires a steady flow of power to work properly all the time. After some time, it may cause mechanical problems.

WL1660 Solenoid Door lock FAQ

What voltage does the solenoid door lock work with?

The WL 1660 solenoid door lock can work with either DC12V oDC24V.

Is it safe to fail, or is it fail-safe?

You can make it either way.

How long does it last?

Usually, it lasts more than 100,000 times, depending on how it is used.

Is it safe to use it outdoors?

The standard usage of the device is indoor, but it can be used outdoors with protective design.

Can I make changes to this WL 1660 solenoid door lcok ?

Yes, you can change the voltage, stroke, force, and the coating of housing.

How to Choose a Solenoid Door Lock

To select the best solenoid door lock, you must consider how secure it is, how well it works with electricity, how it is constructed, and what the weather is like. First off, you must consider whether you want it to be fail-safe or fail-secure. The fail-safe type will open when the power goes off so you can get out quickly in case of an emergency.

Second, check the voltage and current requirements. See that the lock will work with your system’s voltage and current requirements (DC 12V or DC 24V). Consider how much current it will use and how long it will be required to work to prevent overheating. Select locks that are designed for long duty cycles if you intend to use them constantly.

Third, check the length of stroke and the holding force. The lock should have enough holding force to hold the weight of the doors. The dimensions should also be checked carefully, as they will depend on the place where the lock will be installed. The dimensions should be correct.

Fourth, consider temperature ranges, humidity levels, exposure to dust, and exposure to vibration. The lock should not rust. The lock casing should also withstand harsh conditions.

Fifth, consider integration requirements. The lock should integrate well with access control boards, RFID readers, keypads, and biometric systems. The lock should respond quickly and should have well-synchronized signals.

Finally, consider the reliability of the lock and the manufacturer’s capability to make the lock. It is very important to have quality control and testing standards before purchasing locks in large quantities. Samples should always be obtained before purchasing to ensure they are of good quality.

You may select a solenoid door lock that will work safely and efficiently and will last long by carefully evaluating its needs.
