WL1230 Rod Core Ferrite Coil for Industrial Applications and OEM

Rod Core Ferrite Coil is a high-performance inductive device for receiving, electromagnetic coupling and frequency application. It uses ferrite rod as magnetic core and copper winding to reach high inductance in compact design. Ferrite material provides high magnetic permeability that makes it possible to concentrate magnetic field and improve the signal performance.

Rod Core Ferrite Coils are used in AM antennas, RFID readers, wireless sensors, smart meters, automotive electronics and industrial control systems. The main advantages of them are low power consumption, high stability, high sensitivity and long service life. The adjustments to ferrite material, winding, wire diameter, dimensions and electrical parameters are possible in custom manufacturing. Rod Core Ferrite Coils are an essential solution for today’s electronic and communication applications due to these qualities.

Get A Free Quote

PDF Download

Rod Core Ferrite Coil

Rod Core Ferrite Coil is a device that operates on the principles of electromagnetic induction. Magnetic field around the coil appears because of the AC current in the copper winding. Ferrite rod core provides high magnetic permeability and thus increases the concentration of the magnetic flux and the inductance of the coil.

During receiving applications, the ferrite rod is exposed to time-varying magnetic field produced by external electromagnetic waves. Time-varying magnetic flux induces electrical signal in the winding and it is further processed by electronic circuits.

Rod Core Ferrite Coils will enhance the efficiency of magnetic coupling and the coil will be able to receive weaker signals compared to air-core designs. Performance depends on properties of the ferrite material, size of the core, winding turns, frequency and matching with the circuit; the correct design will ensure high sensitivity, low energy losses and stable signal transmission.

Features of Rod Core Ferrite Coil.

Rod Core Ferrite Coil provides high magnetic permeability, compact design and excellent inductance stability. The ferrite rod core increases the concentration of magnetic flux, improves the sensitivity of the signal and reduces electromagnetic losses. It also ensures stable performance in the low and medium frequency bands and possibility of the customization of electrical parameters. Main features include: high Q-factor, low power consumption, good environmental stability, precise winding technology. Rod Core Ferrite Coils are available in a wide range of ferrite materials, sizes and winding designs to fit the variety of industrial requirements. They are light-weighted and durable, thus perfect for antennas, sensors, communication devices and electronic control applications.

Rod Core Ferrite Coil Video

Rod Core Ferrite Coil Detail Display

Rod Core Ferrite Coil Supplier for Global Industries

Rod Core Ferrite Coil Working Principle and Features

Rod Core Ferrite Coil for Communication Equipment

Rod Core Ferrite Coil

Item	Description
Ferrite Coil Inductor	Enameled copper wire
Wire Diameter	0.3 (AWG options available)
Winding Type	Single-layer round or sectional winding
Core Material	Magnetic Rod
Footprint length	30 mm
Encapsulation	Optional varnish, epoxy, or coating
Mounting	Through-foot / Custom

Electrical Specifications (Typical)

Parameter	Description
Inductance Range	0.1 µH – 100 µH (customizable)
Inductance Tolerance	±2%, ±5%, ±10%
DC Resistance (DCR)	Custom
Q Factor	High Q, optimized for frequency range
Self-Resonant Frequency	High, application-dependent
Operating Frequency	kHz to MHz range
Rated Current	Custom per design
Insulation Resistance	≥100 MΩ

Why Rod Core Ferrite Coil is So Popular?

The popularity of Rod Core Ferrite Coils increases due to the need for compact and efficient magnetic components in the modern electronic systems. They have compact design for the high performance and installation.

The demand for high-sensitivity coils is growing due to the development of the IoT devices, RFID technology, wireless communication, smart meters and industrial automation. Ferrite rod cores increase the magnetic efficiency and help devices to receive signals more efficiently with low power consumption.

Also the important aspect is the customization ability. Manufacturers are able to adjust the dimensions of the coil, ferrite materials, winding design and electrical parameters according to the application requirements.

Thus, Rod Core Ferrite Coils are still important in the modern electronic and industrial technologies.

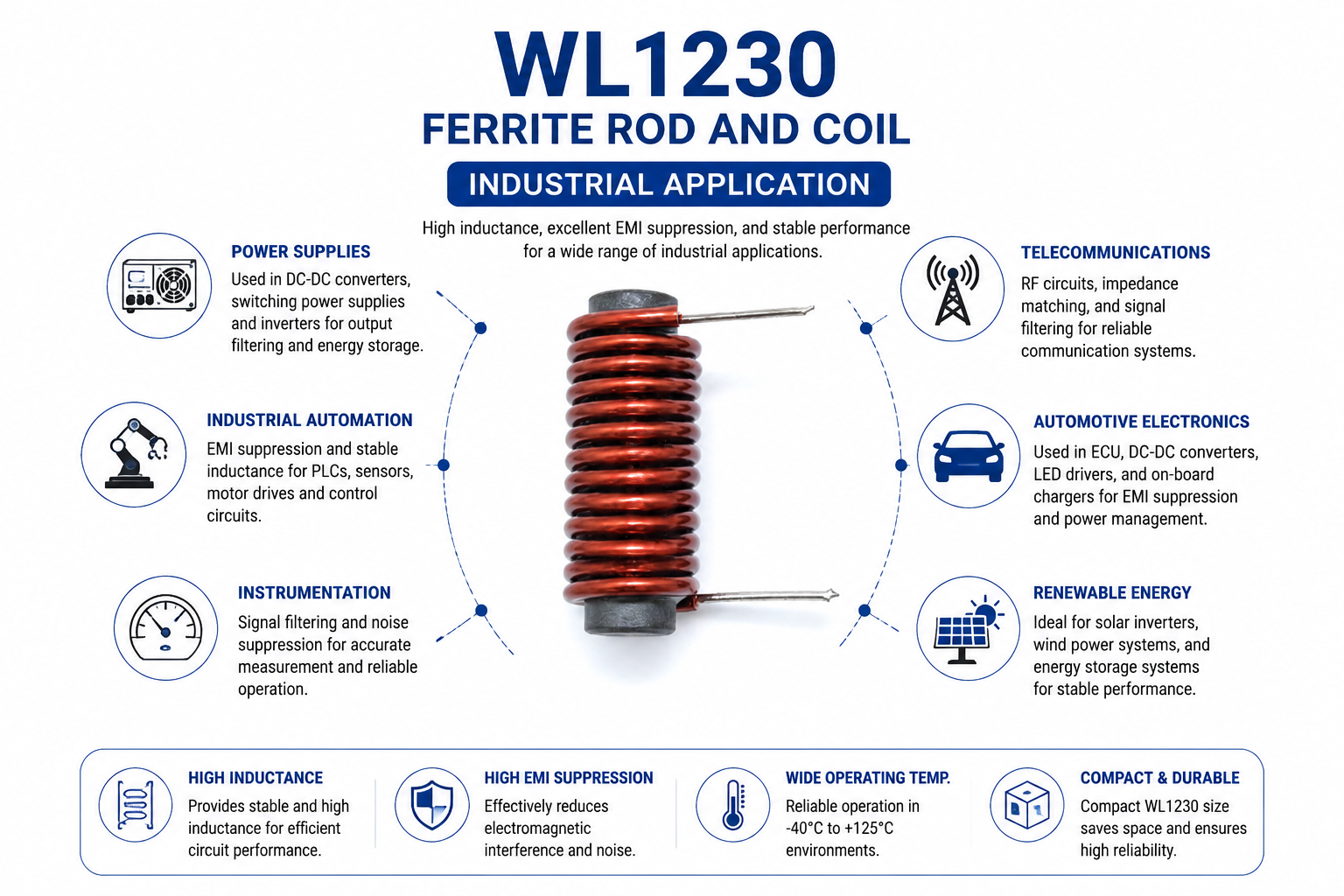

Rod Core Ferrite Coil Applications

Rod Core Ferrite Coils are widely applied in industries where reliable processing of electromagnetic signals and efficient energy transfer are necessary. One of the most common applications is antenna systems where ferrite rods increase the sensitivity of the signal and decrease the size of the antenna, especially in AM radio receivers and low-frequency communication devices.

Ferrite coils are used in RFID and wireless identification systems to ensure efficient electromagnetic coupling between devices and stable data transmission. They are also used in smart cards, access control systems and wireless sensor networks.

In the automotive industry they are used in keyless entry systems, tire pressure monitoring systems and electronic control modules due to the compact design and stable performance.

In the industry of automation these coils are used in sensors, measuring devices and control systems that require precise signal detection. Rod Core Ferrite Coils can also be found in consumer electronics, smart meters, medical devices and IoT products.

Rod Core Ferrite Coils with their excellent magnetic properties and possibility of customization continue supporting advanced electronic technologies.

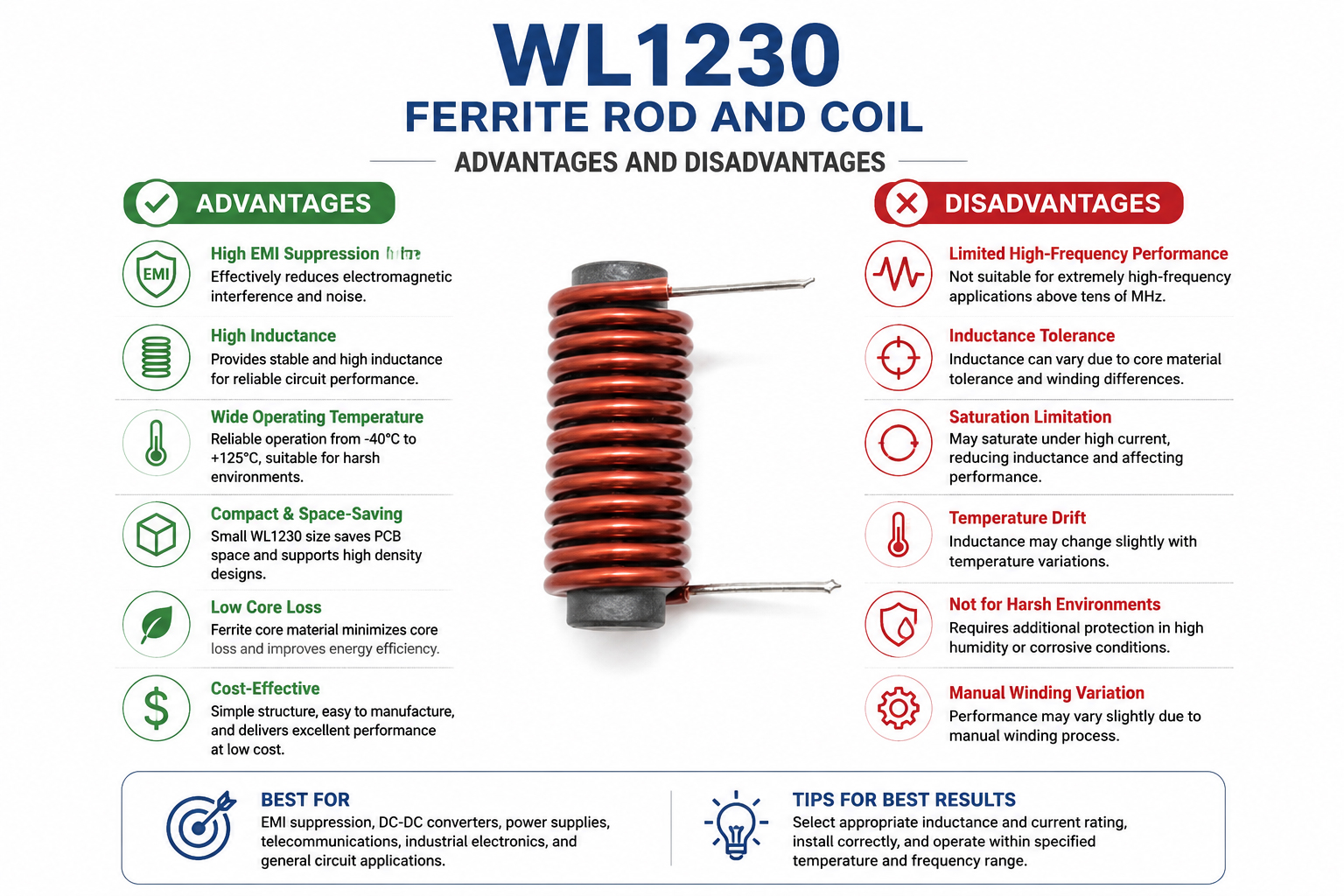

Rod Core Ferrite Coil Advantage and Disadvantage

Advantages of Rod Core Ferrite Coil.

Rod Core Ferrite Coils have a lot of advantages in the electronic applications. They have high magnetic permeability that allows concentrating the magnetic flux, thus increasing the inductance and signal sensitivity. They have good performance in compact designs as ferrite cores allow having smaller coil sizes than air-core coils.

They also provide reliable performance in the industrial environments, low energy losses, good frequency characteristics and stable operation. The customization ability allows manufacturers to tailor electrical parameters according to the requirements of the particular application.

Disadvantages of Rod Core Ferrite Coil

Rod Core Ferrite Coils have some disadvantages despite their advantages. Ferrite materials are quite brittle and may break under mechanical impact. The magnetism of the material is temperature-dependent and may require special selection of materials for the harsh environment.

The manufacturing process requires precision winding and quality control, thus raising the production costs. In addition, if the coil is not matched to the circuit, inefficiency or signal loss may appear.

On the whole, the advantages of Rod Core Ferrite Coils make them a popular choice for many applications, but their disadvantages can be avoided with proper selection and design.

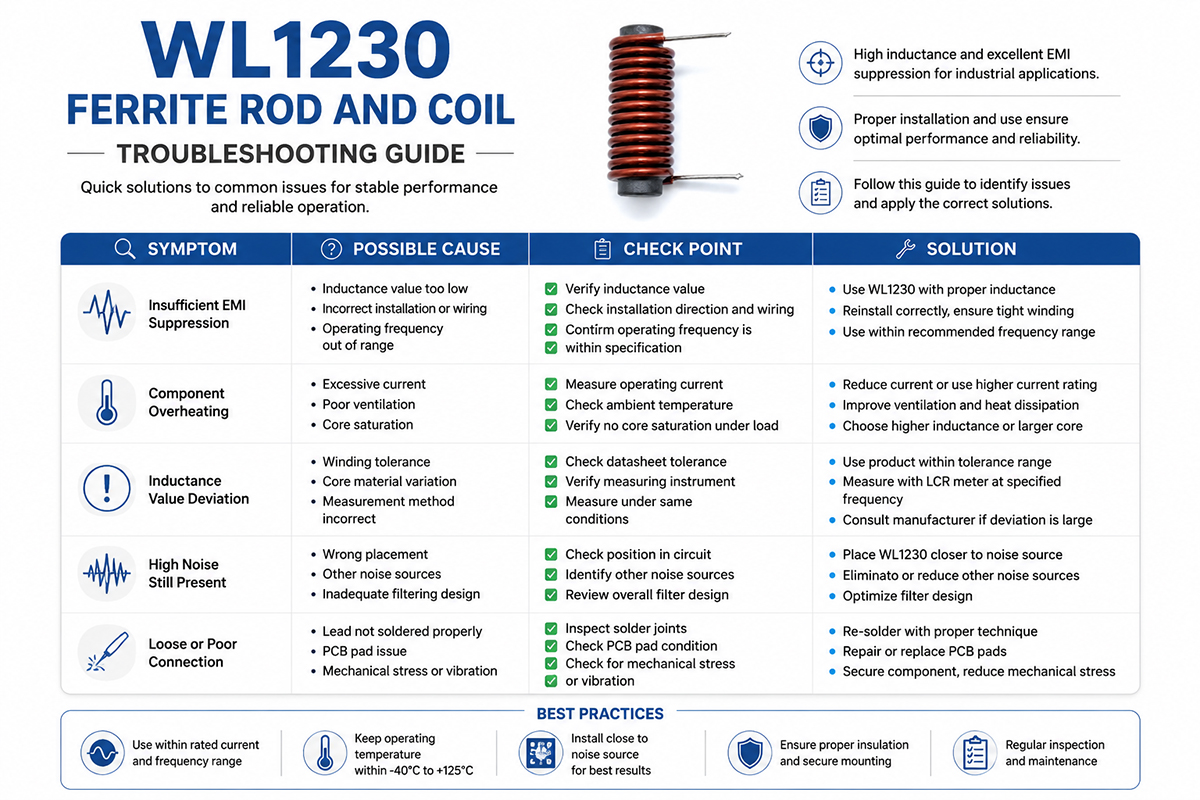

Troubleshooting of Rod Core Ferrite Coil.

The common Rod Core Ferrite Coil issues are the electrical performance issues, mechanical damage and installation problems.

1.Low Inductance Value

It may appear because of the incorrect winding turns, wrong ferrite material or damaged core. Check the coil specifications and check the inductance with the proper test equipment.

2.Weak Signal Reception

Weak signals may be caused by the wrong direction of installation, poor circuit matching or electromagnetic interference. Adjust the position of the coil and improve shielding if needed.

3.Too Much Resistance

The high resistance may reduce the efficiency. Check the wire diameter, the quality of the winding and connections.

4.Temperature Instability

The performance variability with the temperature change means that ferrite material is not suitable. Choose the core material that is designed for the required temperature range.

5.Damage to the Property

Ferrite rods may break in case of mechanical impact or improper assembly. Check the core carefully and replace the broken parts.

6.Prformance Variability

Variability in production, poor winding accuracy or materials inconsistency may cause instability. Choose the reputable suppliers with the strict quality control.

Most of the Rod Core Ferrite Coil failures can be prevented with proper installation, proper selection of components and testing.

FAQ

1. What is Rod Core Ferrite Coil?

Rod Ferrite Coil is used for Signal Reception, Electromagnetic Coupling and Inductive Applications. They have broad usage in AM radio antennas, RFID systems, wireless communication, smart meters, industrial sensors, automotive electronics and IoT. The presence of the ferrite rod core ensures a higher concentration of magnetic flux hence increased sensitivity as compared to air core coils.

2. Why does a ferrite rod core work better than an air core?

Ferrite rod cores have high magnetic permeability compared to air core hence increased inductance. They allow small coil sizes with good signal performance. Rod core ferrite coils have an added advantage as far as sensitivity, energy loss and stability are concerned. These coils are the best choice for small size electronic devices and industrial applications.

3. How to choose the right Rod Core Ferrite Coil?

Selecting the right Rod Core Ferrite Coil depends on several factors such as frequency of operation, inductance value, ferrite material, core size, coil winding and working environment. It is important to take into account sensitivity, temperature range, installation space and circuit matching. Varying the length of the rod core, wire thickness, number of coil windings and electrical specification can result in different effects.

4. What kind of ferrite material is used in Rod Core Ferrite Coils?

Ferrites materials used in Rod Core Ferrite Coils include Manganese Zinc (MnZn) and Nickel-Zinc (NiZn). The MnZn ferrite material is normally used for low frequencies due to high permeability and good magnetic characteristics. The NiZn ferrite material is more favorable for higher frequencies since of their lower electrical losses. Choosing the right material is based on operating conditions and frequency range.

5. Can ferrite rod core coils be customized?

Yes. Rod Core Ferrite Coils can be customized as per the customer’s requirements. Some of the variations can be on the rod size, material, diameter, number of coil windings, wire thickness and other electrical specifications. Industrial sensors, RFID systems, communication equipment, automotive electronics and special electronic products use customized designs.

6. What is the performance of a Rod Core Ferrite Coil?

There are many factors that affect the performance of the Rod Core Ferrite Coil including ferrite material characteristics, core size, coil winding accuracy, wire quality, frequency of operation, temperature change and circuit design. Poor matching of the coil to the electronic circuit results in poor efficiency and sensitivity. Design, testing and quality control of the product are very important.

7. How to check the quality of a Rod Core Ferrite Coil?

The quality checking usually involve measuring the following parameters: inductance value, resistance, Q factor, frequency response, insulation properties and mechanical strength. Environmental tests such as temperature cycling are also carried out in some cases. Trusted manufacturers have professional testing equipment that allows checking all the electrical specifications of the product.

8. Why Rod Core Ferrite Coils are more popular in industrial applications?

Rod Core Ferrite Coils are gaining popularity because of the requirement of smaller, efficient and highly reliable magnetic parts in modern electronics. They are excellent for wireless communications, IoT, automation and sensor technology due to high sensitivity, compact size, low power consumption and customization. With the growing demand for smart electronics in industries, demand for ferrite coils is also increasing.

How to Choose Rod Core Ferrite Coil ?

Electrical, mechanical and environmental requirements have to be taken into account while selecting the appropriate Rod Core Ferrite Coil.

1.Selection of Operating Frequency

The first step is choosing the range of operating frequencies. The different ferrite materials behave differently at different frequencies. For the low frequency applications materials with high permeability are usually used, while high frequency applications may require materials with low losses.

2.Choosing the Right Ferrite Material

The ferrite material affects inductance, temperature stability and magnetic efficiency. Materials have to be selected according to application requirements – reception of the signal, antenna performance or electromagnetic coupling.

3.Coil Size and Shape

Length and diameter of the ferrite rod affect the magnetic performance. Longer rods give better signal sensitivity. Smaller sizes are preferable for the compact electronic devices. Also the installation space has to be considered.

4.Verification of Inductance Requirements

The inductance value of the coil has to be compatible with the design of the electronic circuit. The inductance values are affected by the following factors: ferrite permeability, winding turns, wire diameter and coil structure.

5.Evaluation of Quality and Reliability

Industrial usage requires taking into account the operating temperature range, mechanical strength, moisture resistance and uniformity of the production. High-quality coils undergo electrical and reliability tests.

6.Consideration of Customization Ability

Custom designs are required in many applications. The professional supplier will provide support for the customization of ferrite dimensions, winding, terminals and electrical parameters.

Proper selection of Rod Core Ferrite Coil will provide better signal performance, stable operation, less energy losses and longer life of the product.
