Chapter 1: Introduction Overview
Retail stores, supermarkets, restaurants, banks, ticket machines, and self-service terminals commonly use point of sale (POS) systems. Among other components, receipt printers incorporated into such equipment require highly reliable cutting mechanisms that allow quick and clean separation of paper at the end of each transaction. The core component of such receipt printers is the solenoid-driven receipt cutter.
It is necessary to use a compact actuator in the high-speed receipt cutter to ensure rapid actuation, accuracy of position, long lifetime, and constant cutting force. The open-frame solenoid is a popular solution for various POS receipt cutter applications due to its simple construction, high response speed, efficient electromagnetic performance, and flexibility of customization.
Compared with traditional sealed solenoids, open-frame solenoids offer improved heat dissipation, light weight, and better integration with automated printing mechanisms. Understanding of design peculiarities, performance parameters, and customization possibilities of open-frame solenoids is very useful for POS equipment manufacturers looking for motion control components.

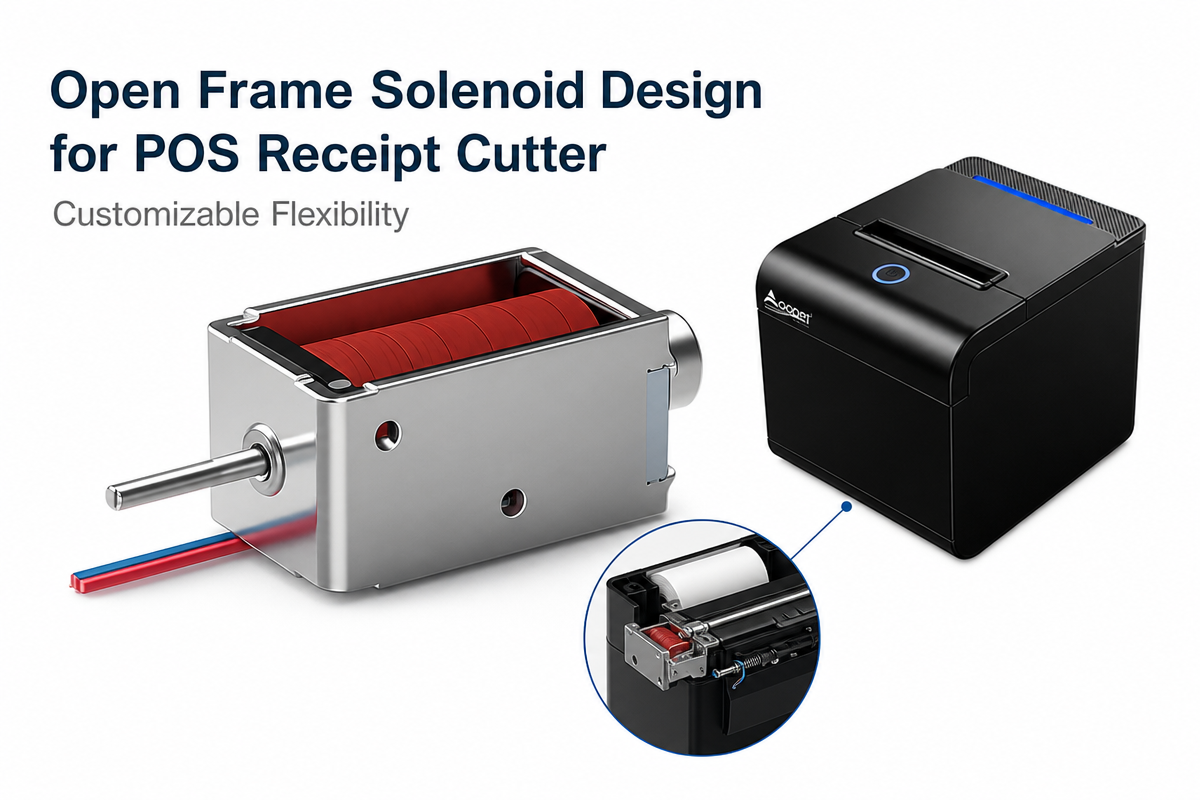

Chapter 2: What is an Open Frame Solenoid for POS Receipt Cutters?
The open frame solenoid is the electromagnetic actuator consisting of the coil, metal frame, plunger, return spring, and some parts of the magnetic circuit. When the coil is energized by electrical current, the magnetic field is created. The magnetic field attracts or repels the plunger and creates the linear mechanical motion.
The solenoid in POS receipt cutters transforms the electrical energy from the control board of the printer into mechanical energy. This mechanical energy triggers the cutting blade assembly, and the printer can cut the receipt paper fast.
The open frame means that the electromagnetic parts are partly exposed and not enclosed in the tubular casing. The main advantages of this design are
- Improved heat dissipation during continuous operation;
- Lightweight construction;
- Lower manufacturing costs;
- Adjustable stroke and force requirements;
- Easy integration with mechanical assemblies.
The POS printer must operate reliably during repeated high-speed operation, as it performs thousands or millions of cutting operations over its lifetime.

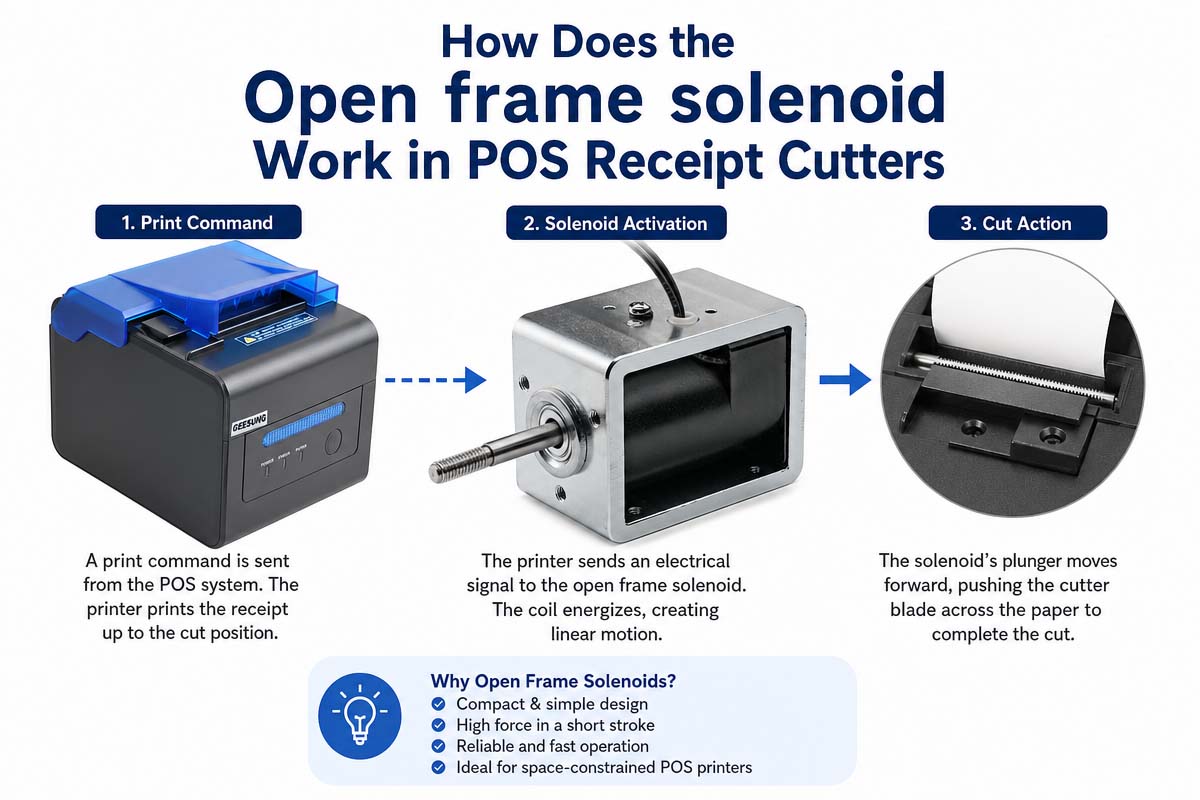

Chapter 3: How Does the Open Frame Solenoid Work in POS Receipt Cutters?
The working principle of the POS receipt cutter solenoid is based on the generation of electromagnetic force.
Once the transaction is completed in the point of sale system, the printer controller sends the short electrical pulse to the solenoid coil. When the coil is energized, it generates the magnetic field, which attracts the iron plunger to the center of the magnetic circuit.
There is a mechanical linkage between the plunger motion and the cutter blade assembly. The rapid linear motion pushes the blade in the forward direction, and the blade cuts the receipt paper.
After the end of the electrical pulse, the return spring returns the plunger to its initial position, ready for the next operation.
The full cycle of operation includes the following steps:
- Control system electricity activation
- Generation of magnetic force in the coil
- Fast plunge action
- Mechanical blade actuator
- Spring back and reset
The solenoid should have an optimal magnetic design, low moving mass, and tight tolerances to provide rapid response time for high-speed POS applications.
Chapter 4: POS Receipt Key Requirements for Solenoid Cutter
4.1. Fast response
To support the efficiency of the customer checkout, the receipt cutters have to be cut very fast.
Well-designed open-frame solenoid provides:
- Fast pull-in times
- Fast-release answer
- Low mechanical lag
- High-frequency stable operation
Electromagnetic response time can be reduced due to the improvements in the coil design and magnetic materials.
4.2. Long life
The commercial Point of Sale (POS) equipment processes hundreds or thousands of transactions per day. The solenoids used to cut receipts have to be very robust.
The important design features are
- Wear-resistant plunger material
- High-quality recoil springs
- Tight machining tolerances
- Dependable coil insulation
- Stable magnetism performance
Depending on application conditions, many industrial-grade solenoids have to provide more than 100,000 operating cycles.
4.3. Compact size and lightweight construction
“POS printers are becoming smaller and smaller, in particular portable receipt printers and mobile payment terminals.”
The open-frame solenoid design reduces the installation space since:
- The structure is thinner than most of the enclosed actuators
- The mounting bracket can be customized
- The magnetic frame can be optimized for particular applications
4.4. Optimization of cutting force
The receipt cutter has to provide sufficient force to cut different types of paper without damaging the mechanism.
The solenoid force depends on the following factors:
- Power rating of the coil
- Plunger size
- Magnetic circuit design:
- Air gap distance
- Length of stroke
- Voltage of supply
Engineers have to balance between the force output and power consumption to provide reliable cutting performance.
Chapter 5: Advantages of Open Frame Solenoid Design for POS Applications
- Improved thermal performance
The exposed structures of open-frame solenoids allow more efficient dissipation of the heat generated by the coil.
This is especially useful for POS printers that operate continuously in the following environments:
- Grocery stores
- Food & restaurants
- Ticketing system 4.
- Self-service kiosks
The improved thermal performance enhances coil life and increases operational reliability.
Chapter 6: Customizable Flexibility
Different POS printer manufacturers have different mechanical layouts and performance requirements.
Custom open-frame solenoid design can be adjusted depending on:
- Voltage requirements
- Stroke distance
- Pull force
- Mounting position
- Connector type
- Duty cycle
- Operating temperature
OEM customization allows the actuator to match the exact receipt cutter mechanism.
Cost-Effective Manufacturing
The simple structure of open-frame solenoids reduces manufacturing complexity compared to more complicated actuators.
The benefits include:
- Lower material usage
- Easier assembly
- Reduced tooling costs
- Efficient mass production
This advantage makes open-frame solenoids suitable for high-volume POS equipment manufacturing.
Chapter 7: High-Speed Receipt Design Considerations for Cutting Solenoids
Optimization of magnetic circuits
The performance of the solenoid is directly dependent on the magnetic circuit. Engineers have to optimize the following elements:
- Material of the iron core
- Design of pole
- Air gap distance
- Path of magnetic flux
A good design of the magnetic system increases the force and reduces energy consumption.
Design of Coils
The coil is one of the most important parts of the solenoid.
The key parameters are
- Copper wire diameter.
- Number of turns of winding
- Value of resistance
- Rating of voltage
Heat Production
The coils for POS applications are designed to have short activation time and provide strong cutting force while maintaining low power consumption.
Chapter 8: Mechanical Tolerance Management
8.1 The accuracy of motion for receipt cutters. The excessive clearance or misalignment can cause:
- Partial cutting
- More noise
- Wear and tear
- Shortened service life
Precision manufacturing ensures smooth plunger movement and consistent operation.
8.2 Noise Suppression
The POS equipment is located in customer-facing areas. The excess noise from the actuator can influence user satisfaction.
The methods of noise reduction are
- Shock-absorbing material
- Spring design optimization
- Controlling of the plunger movement
The fast operation and quiet operation are the advantages of the well-designed solenoid.
Chapter 9: Use of Open Frame Solenoid Beyond Receipt Cutters
The major application is POS receipt cutters, but open-frame solenoids also find wide use in:
- Ticket machines
- Barcode printers
- Label Printing
- ATM systems
- Payment kiosks
- Medical devices
- Office Automation Equipment
“Industrial control systems”
The compact construction and reliable linear movement make them ideal for many automated devices.

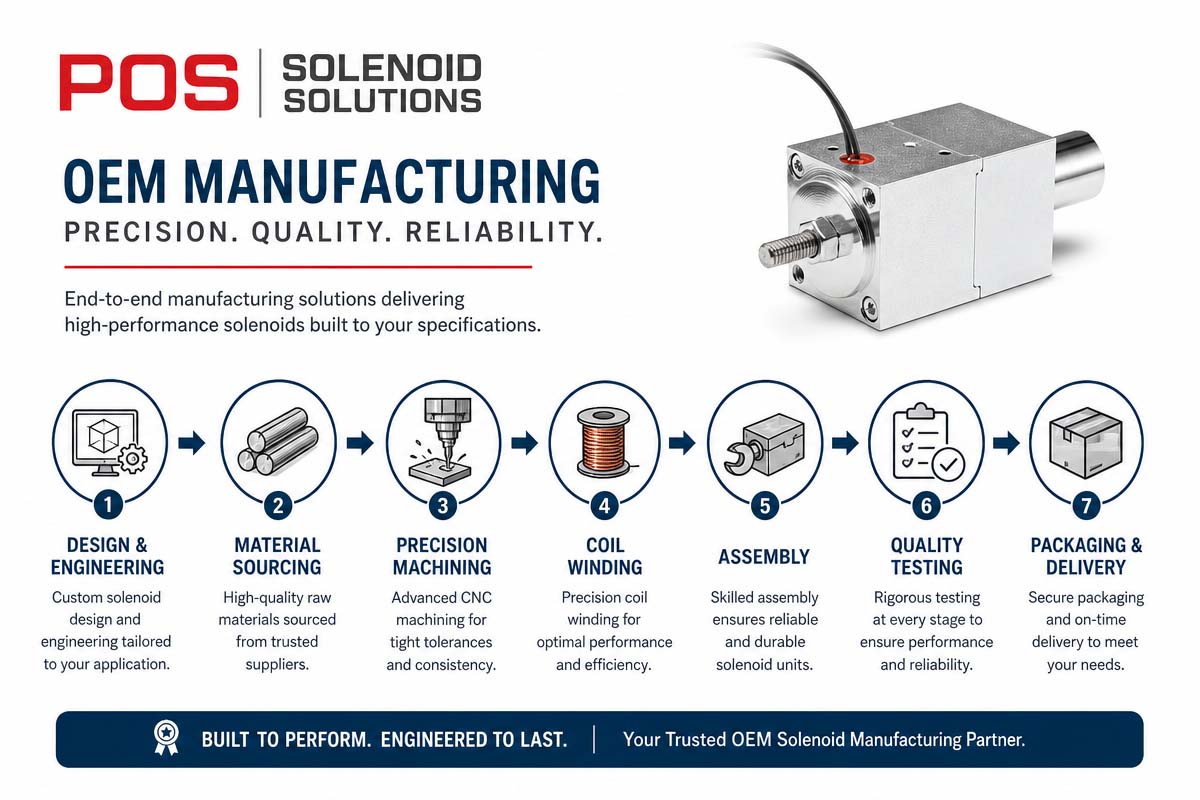

Chapter 10: POS Solenoid Solutions OEM Manufacturing Process
Professional solenoid manufacturers usually provide complete custom service. This includes:
1. Requirements analysis
Review by engineers:
- Force required
- Stroke length
- Voltage 6.
- Duty cycle
- Building space
- Lifetime requirements
-
Magnetic and Mechanical Design
The design team develops:
- 3D models
- Magnetic modeling
- Coil specs
- Structural elements
The prototype testing confirms that the design meets the application requirements.
-
Prototype fabrication
The samples are fabricated for:
- Force testing
- Speed test
- Temperature testing
- Cycle tests
Client Feedback for Final Optimization.
-
Quality assurance and mass production
Production testing can include:
- Resistance check of coil
- Voltage Test
- Measurement of pull force
- Noise inspection
- Endurance tests
The strict quality controls guarantee the consistent performance in large-volume POS applications.
Chapter 11: Selection of the Correct Open Frame Solemnoid Manufacturer
Buyers should consider the following points when selecting a POS receipt cutter solenoid supplier:
- Engineering competence
The qualified manufacturer should provide:
- Electromagnetic custom design
- Mechanical engineering support
- Prototype Development
- Application Testing
- Manufacturing capability
The key production capabilities include
- Coil, Winding
- Metal stampings
- Injection molding
- CNC machining
- Production lines
- Test laboratories
Quality Assurance
Good suppliers should have:
- Quality management systems
- Inspection procedures of production
- Test equipment for reliability
These capabilities provide stable supply for long-term POS product programs.
Chapter 12: Conclusion
The high-speed POS receipt cutters require compact, reliable, and durable actuators that perform millions of precise movements. The open-frame solenoid design provides an ideal solution providing rapid response, efficient electromagnetic performance, and customizable and cost-effective manufacturing.
For POS printer manufacturers, selection of the right solenoid design partner may significantly improve cutter reliability, reduce maintenance expenses, and increase overall product performance.
Chapter 13: FAQS on Open Frame Solenoid Design for POS Receipt Cutter Solutions
1. What are the purposes of using open-frame solenoids in POS receipt cutters?
The open-frame solenoids can quickly and reliably provide linear motion for the mechanisms used to cut the receipts in POS printers.
2. Why are open-frame solenoids suitable for high-speed POS receipt cutters?
Compact size, fast response, and efficient electromagnetic actuator are advantages of the open frame solenoids. Open frame solenoids can be designed in order to have short strokes and fast response, which makes them suitable for use in POS printers and receipt cutters.
3. What are the necessary specifications that must be considered while designing the open-frame solenoid for the POS receipt cutter?
Specs like voltage, coil resistance, pulling force, stroke length, response time, duty cycle, operating temperature range, mounting dimensions, and shaft characteristics must be chosen in accordance with the mechanical load and conditions of installation.
4. Would it be possible to customize an open-frame solenoid for different POS receipt cutters?
Yes, a custom open-frame solenoid can be developed according to the client’s specifications concerning the mechanical and electrical parameters.
5. How does a solenoid increase the reliability of POS receipt cutters?
Correctly designed solenoids will provide reliable pulling force and repeated actuation. The optimization of the magnetic circuit, material, machining, and springs’ force will increase the reliability of the device due to mechanical stresses’ reduction.
6. What kind of duty cycle is required for the POS receipt cutters applications?
The duty cycle required depends on the frequency of the operating and cutting mechanism. As receipt cutters are mostly operated intermittently, a solenoid can be developed for an intermittent duty cycle. The required duty cycle can be calculated using the following formula: (cutting frequency x (time of energizing + time of cooling))/(operating temperature).
7. How to optimize the response time of a POS receipt cutter solenoid?
Using the following methods, it is possible to optimize the response time of the POS receipt cutter solenoid: optimal coil resistance, design of the magnetic circuit, reduction of the plunger mass, reduction of air gap, suitable springs’ characteristics, and optimal operating voltage. The mechanical friction and linkage design must be minimized as well. To optimize the response time, the complete system (solenoid and mechanism) must be tested.
8. How to choose the open-frame solenoid manufacturer?
Select a company that specializes in the manufacture of custom electromechanical actuators, custom coil winding, assembly, and testing. The company should be capable of reviewing your designs and specifications, prototyping the units, life testing the parts, and providing you with a reliable manufacturing solution for your POS receipt cutter application.
