Chapter 1: Introduction: Professional Metal Stamping Workshop for Precision Components
A modern metal stamping shop is the core to high-volume precision component production. In the solenoid and solenoid valve manufacturing process, the role played by the metal stamping process in the manufacture of the frame, brackets, housing, magnetic yokes, springs, terminals, and shields cannot be overemphasized.

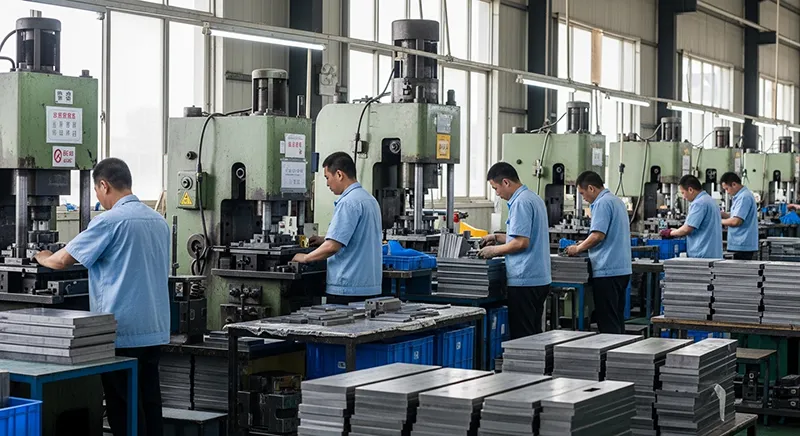

We can boast of a full range of high-precision and high-efficiency production equipment, meeting the highest standards of quality and satisfying even the most demanding requirements:
5 CNC machines: These machines are capable of producing complex parts with high levels of precision.
10 sets of 50 Ton to 110 Ton continuous punching presses: Designed for quality and high-volume stamping output.
5 wire-cut EDM Machines: Providing micron-level precision for complex designs and difficult-to-cut materials.
8 Fully Automatic Tapping Machines: Fast, accurate, and precise thread creation is ensured with the eight
4 precision surface grinding machines: Ultra fine surface finish and superior dimensional accuracy.
2 Spark Drilling Machines: Equipped to produce micro-holes of utmost precision.
Chapter 2: Make the projects with accuracy and efficiency.
Our metal stamping facility offers superior metal stamps, precise pressing machines, rigorous quality inspection procedures, as well as skilled technicians. These factors combine to provide precise stamped pieces for various uses such as automobiles, industrial control, medical equipment, and fluid control solutions.
Capabilities Overview – Metal Stamping Workshop
Our workshop is capable of handling various stamping processes, including:
Progressive die stamping
Single-stage stamping
Deep drawing.
Bending and forming.
Piercing and blanking.
Coined and embossed:
Production capacity:&#
Press tonnage: 10T – 200T
Fast stamping for mass production.
Small batch stamping and prototype stamping services
Chapter 3: Materials Handled by Our Metal Stamping Workshop
We imprint various types of frequently used metals in the production of solenoids and valves:
Carbon Steel.
Corrosion-resistant:
Stainless steel (S
Silicon Steel (Electrical Steel).
Brass and copper alloys.
Aluminum alloys.
Phosphor Bronze
Range of thickness:
0.1 mm to 3.0 mm (other ranges can be
Everything is traceable, and the materials verify before manufacturing.
Chapter 4: Stamping Tooling Design & In-House Die Manufacturing
4.1 Tooling Design for Precision Stamping
Our tooling engineers focus on a number of key areas:
Strip layout design.
Control of Burr Direction.
Maximizing material utilization.
Improving die life.
Press compatibility check.
Every rubber stamping die is carefully made to ensure dimensional stability and resistance to wear and tear.
4.2 In-House Tooling Manufacturing & Assembly
CNC machining and EDM machining are used.
The process of heat treatment is controlled very carefully.
Precision assembly of dies is done.
Punch and die clearance are checked.
Tryout and validation trials are carried out.
To have in-house tooling is advantageous from the point of view of lead times and quality control.
Chapter 5: Quality Control System in the Metal Stamping Workshop
5.1 Incoming Material Inspection
Thickness is verified.
Surface condition is examined.
Mechanical Properties-Properties are validated.
5.2 In-Process Quality
First Article Inspection (FAI) is done.
Go/No-Go gauges
Optical measurement systems
Burr height monitoring
SPC for Critical Dimensions
5.3 Final Inspection & Traceability
Dimensional Measurement Reporting
Visual Inspection
Batch traceability records
Our quality system is ISO 9001 compliant.
5.4 Automation & Production Efficiency
In our metal stamping workshop, we use the following machines to ensure a consistent quality of material and maximize our production:
Automatic feeders
Straighteners & decoilers
Sensor-based misfeed detection
Automatic parts counting and separation
Automation reduces variations and improves stability.
5.6. Metal Stamping for Solenoid & Solenoid Valve

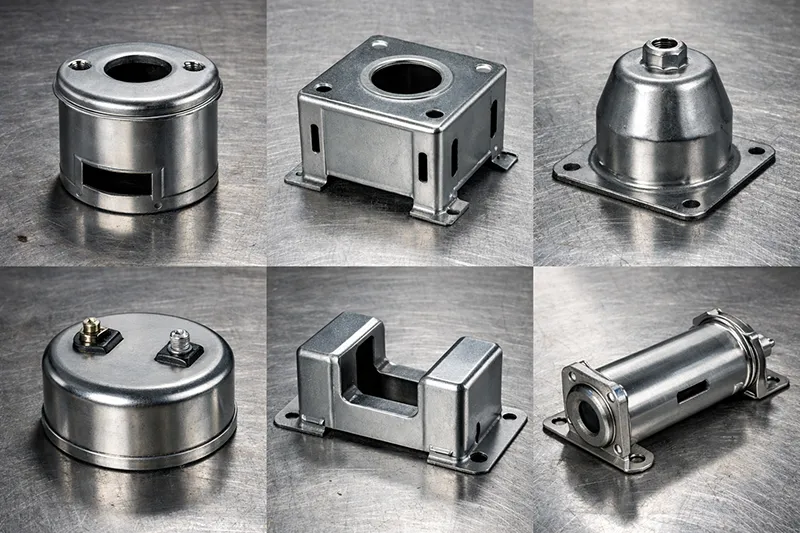

Our components that use stamping come widely to:
Solenoid Frames and Brackets
Magnetic Yokes and Pole Pieces.
-Valve housings and retainers
Electrical terminals and connectors.
Spring Components And Spring Shielding Components.
Precision Stamping warrants:
Proper magnetic alignment.
Stable assembly fit.
Trustworthiness: The System
Chapter 6: Benefits of Our Metal Stamping Workshop
High dimensional consistency.
Economical for medium to large quantities.
Fast production cycles.
Proper tooling life management.
Integration with plastic molding and assembly of a solenoid.
Chapter 7: Challenges and Our Solutions
Typical stamping issues:
Burr formation.
Tool wear.
Material Springback.
Dimensional drift.
So, this is how we address the issue:
Optimized die clearance.
Regular tooling maintenance.
SPC Monitoring.
Experienced operators and engineers.
Nine Cost Optimization Strategies:
Chapter 8: Design Optimization.
Material Selection: It involves selecting materials based on their performance and prices.
Feature Simplification: Whenever possible, reducing complexity in our manufacturing.
Standardization: Standardization entails the use of common attributes and
Tolerance Analysis: Determining proper tolerances for the job.
Chapter 9: Manufacturing Efficiency
9.1 Tooling Optimization
Designing tools for maximum efficiency and life.
Process Streamlining: Reducing the number of processes by streamlining.
Automation: Reduction of cost of labor by implementing automation.
Quality First: Preventing a defect before it occurs.
Supply Chain Management (SCM
Supply Chain – How Do Companies Obtain Material Resources?
9.2 Authoritative Definition
Inventory Management: Just-in-time delivery systems
Logistics Optimization: Efficient shipping and handling
Supplier Partnerships: Building Relationships for Mutual Advantage
Chapter 10: Conclusion- Your Partner for Precision Metal Stamping
In today’s highly competitive world of manufacturing, selection of the proper metal stamping company is key to your success. At our workshop, we use our knowledge, modern equipment, and customer-centric orientation to produce parts that will satisfy your most complex demands. Whether you are looking for high-volume production of automotive parts, precise production for your medical component needs, or specialized stampings for a specific use, we can provide what you are looking for. Why Choose Our Metal Stamping Workshop? Technological Expertise: 2 decades of expertise in precision stamping Advanced Equipment: State-of-the-art presses and tooling capabilities Quality Commitment: High-quality inspection processes and quality systems Customer Partnership: “A Collaborative Approach to Ensure Success” Production Excellence
Production Excellence refers to efficiency in Comprehensive Services: From design through delivery and support Please contact us now to talk about how we can help with your metal stamping needs, so we can work towards helping you accomplish your manufacturing goals.
Chapter 11: Frequently Asked Questions (FAQ)
Q1: Can you describe what kind of metal-stamped products you provide?
We provide the services for progressive stamping, single-stage stamping, bending, deep drawing, and forming.
Q2: What type of material do you stamp?
We provide stamping services on the following materials:
Stainless Steel, Carbon Steel, Copper Alloys, Aluminum, Brass, and Question
Q3: How is your stamping tolerance ability?
Tolerance limits vary between ±0.01 and ±0.05 mm based on the design of the parts.
Q4: Are stamping dies designed and manufactured in-house?
Yes. All of the stamping tooling is in-house designed, manufactured, and maintained.
Q5: Can you support solenoid assembly after stamping?
Yes. We can supply one-stop manufacturing, including stamping, plastic molding, coil winding, and assembly of solenoids. Question6: Are you involved in customer metal stamping orders? Completely. All tasks are customized based on the design and application requirements
